Wall mount Speaker BS-1420 BS-1530 BS-1640

1.4’’+1’’ (BS-1420) / 5’’+1’’ speaker (BS-1530) / 6’’+1’’ speaker (BS-1640) 2,Input voltage 100 Volt and power tabs of 1/2, 1/4 power or 8Ω
  • Model:BS-1420 BS-1530 BS-1640
  • Power: 20 Watts (BS-1420), 30 Watts (BS-1530), 40 Watts (BS-1640)
Details

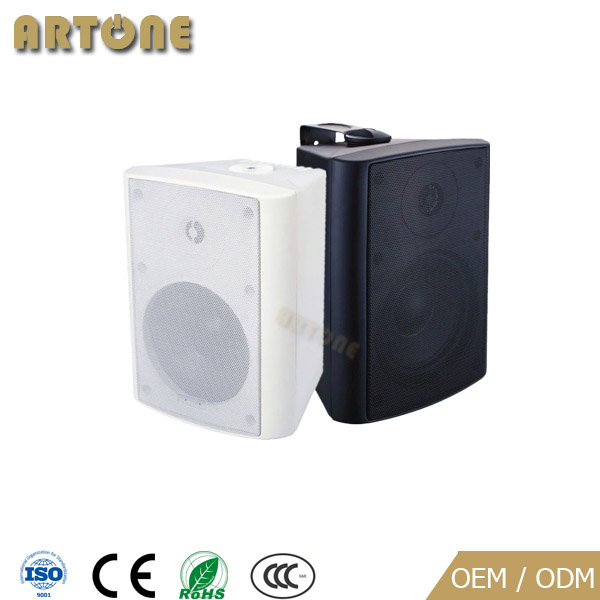

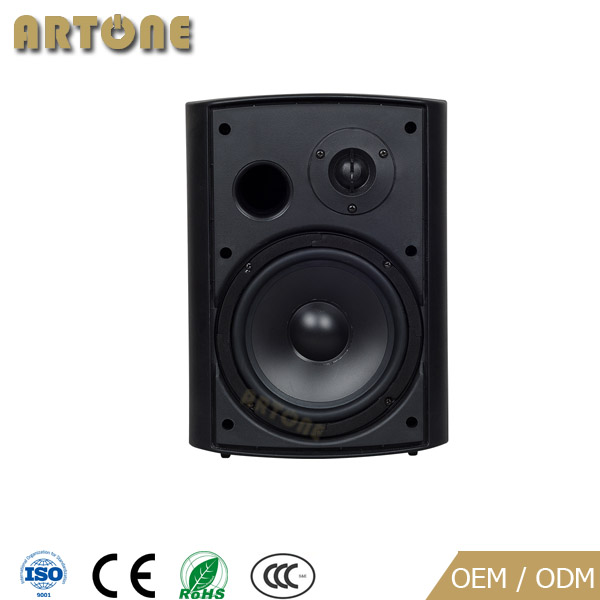

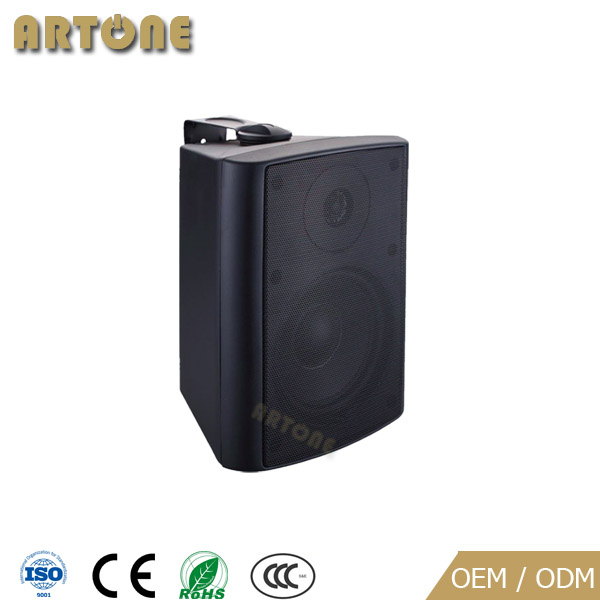

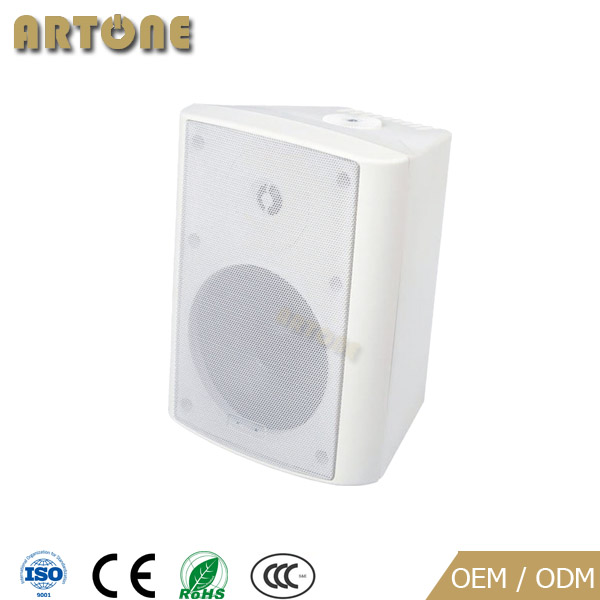

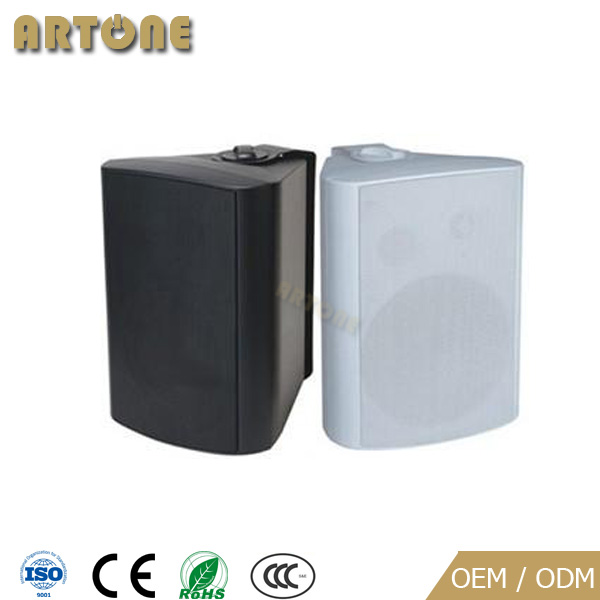

Wall mount speaker, designed in ABS material, 4 inch, 5 inch, 6 inch woofer and 1 inch tweeter speaker, rated power 20W, 30W and 40 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt or power switch to 1/2, 1/4 power and 8Ω . Fast installation with strong mounting bracket. It is durable and practical and very competitive to satisfy sound system at economical budget.

Features

l  4’’+1’’ (BS-1420) / 5’’+1’’ speaker (BS-1530) / 6’’+1’’ speaker (BS-1640);

l  Rated power 20 Watts (BS-1420), 30 Watts (BS-1530), 40 Watts (BS-1640);

l  Input voltage 100 Volt and power tabs of 1/2, 1/4 power or 8Ω;

l  Sensitivity 86dB  (BS-1420) / 87dB (BS-1530) / 88dB (BS-1640);

l  Frequency Response 100~20KHz  (BS-1420) / 90~20KHz (BS-1530) / 80~20KHz (BS-1640)

l  Wall mount speaker, strong mounting bracket;

l  ABS material body, black or white color for option

l  Dimension 215x170x150mm (BS-1420) / 242x182x162mm (BS-1530) / 284x215x190mm (BS-1640)

Specification

Model No.

BS-1420

BS-1530

BS-1640

Rated Power & Power Tabs

20W/10W/5W/8Ω

30W/15W/7.5W/8Ω

40W/20W/10W/8Ω

Speaker

4’’woofer +1’’ tweeter

5’’woofer +1’’ tweeter

6’’woofer +1’’ tweeter

Input Voltage

100V Line / 8Ω

Sensitivity

86 dB

87 dB

88 dB

Frequency Response

100-20KHz

90-20KHz

80-20KHz

Mounting Method

Wall mounting bracket

Color

Black / White

Dimension

215x170x150mm

242x182x162mm

284x215x190mm

Weight

2.2 kg

2.6 kg

3.6 kg
