Wall mount Speaker BS-4420 BS-4530 BS-4640

1,2 way 4’’+1’’ (BS-4420) / 5’’+1’’ speaker (BS-4530) / 6’’+1’’ speaker (BS-4640) 2,Input voltage 100 Volt and power tabs of 1/2, 1/4 power or 8Ω
  • Model:BS-4420 BS-4530 BS-4640
  • Power:20 Watts (BS-4420), 30 Watts (BS-4530), 40 Watts (BS-4640)
Details

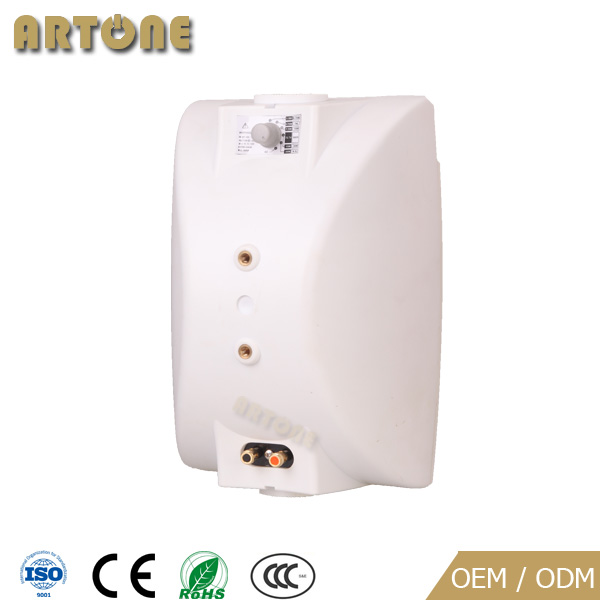

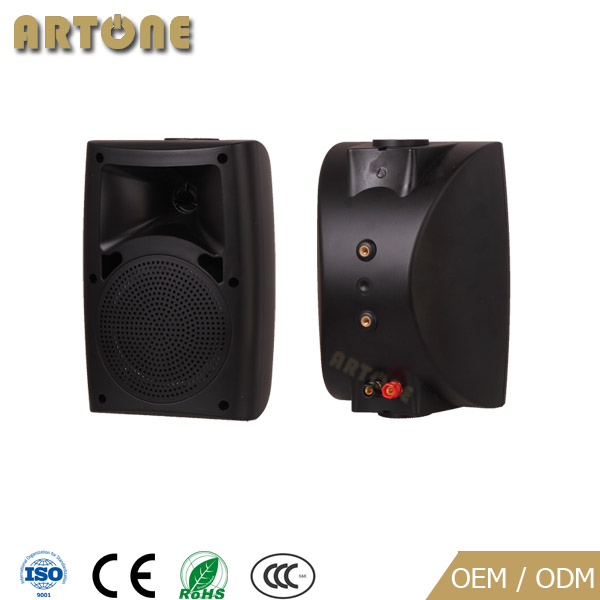

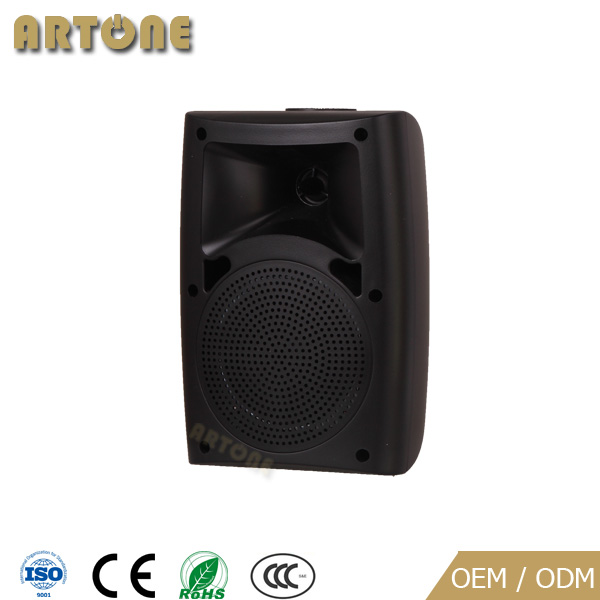

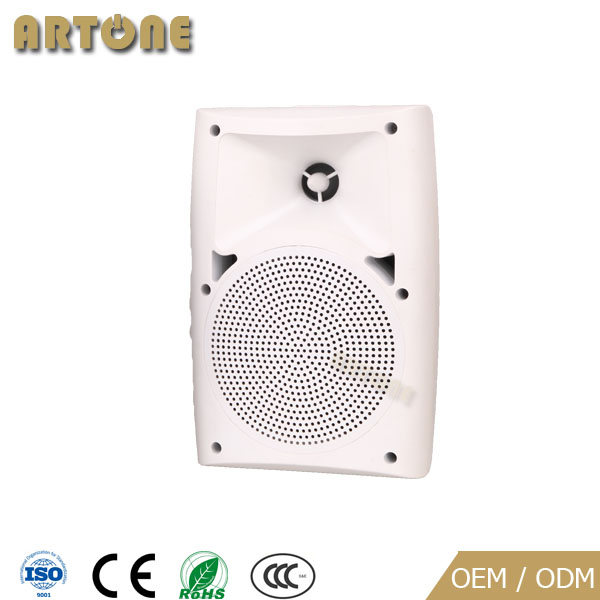

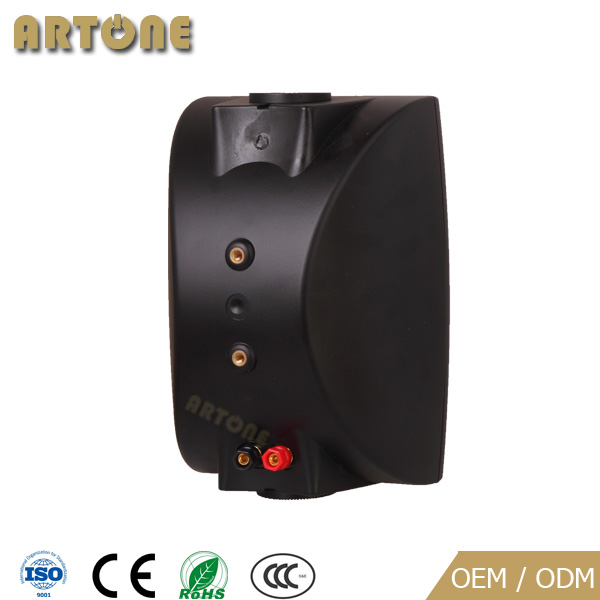

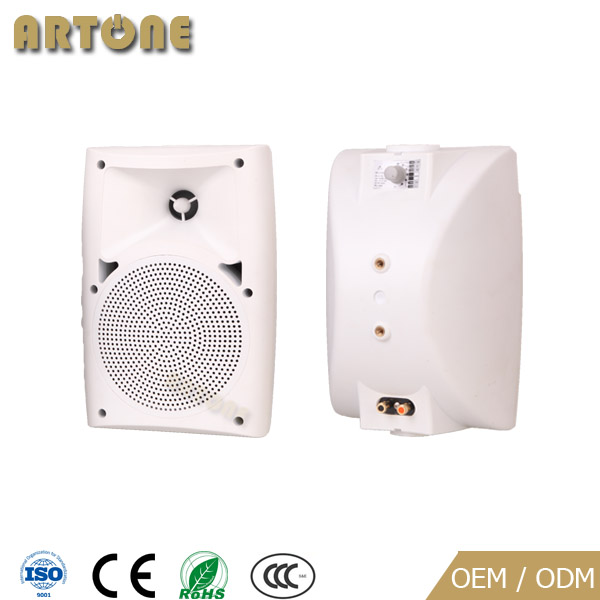

Wall mount speaker, designed in ABS material, 2-way 4 inch, 5 inch, 6 inch woofer and 1 inch tweeter speaker, rated power 20W, 30W and 40 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt or power switch to 1/2, 1/4 power and 8Ω . Fast installation with strong mounting bracket. It is durable and practical and very competitive to satisfy medium or high level sound system.

Features

l  2 way 4’’+1’’ (BS-4420) / 5’’+1’’ speaker (BS-4530) / 6’’+1’’ speaker (BS-4640);

l  Rated power 20 Watts (BS-4420), 30 Watts (BS-4530), 40 Watts (BS-4640);

l  Input voltage 100 Volt and power tabs of 1/2, 1/4 power or 8Ω;

l  Sensitivity 87dB  (BS-4420) / 88dB (BS-4530) / 89dB (BS-4640);

l  Frequency Response 100~20KHz  (BS-4420) / 90~20KHz (BS-4530) / 80~20KHz (BS-4640)

l  Wall mount speaker, strong mounting bracket;

l  ABS material body, black or white color for option

l  Dimension 220x150x135mm (BS-4420) / 255x178x155mm (BS-4530) / 310x213x195mm (BS-4640)

Specification

Model No.

BS-4420

BS-4530

BS-4640

Rated Power & Power Tabs

20W/10W/5W/8Ω

30W/15W/7.5W/8Ω

40W/20W/10W/8Ω

Speaker

4’’woofer +1’’ tweeter

5’’woofer +1’’ tweeter

6’’woofer +1’’ tweeter

Input Voltage

100V Line / 8Ω

Sensitivity

87 dB

88 dB

89 dB

Frequency Response

100-20KHz

90-20KHz

80-20KHz

Mounting Method

Wall mounting bracket

Color

Black / White

Dimension

220x150x135mm

255x178x155mm

310x213x195mm

Weight

2.2 kg

3.2 kg

3.8 kg
