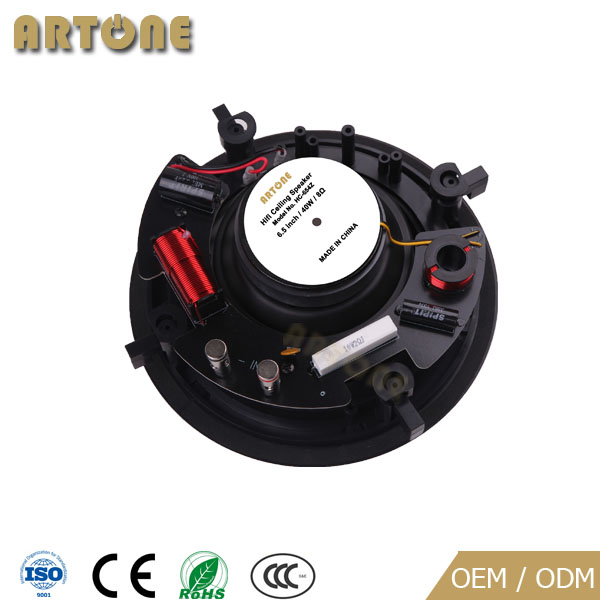

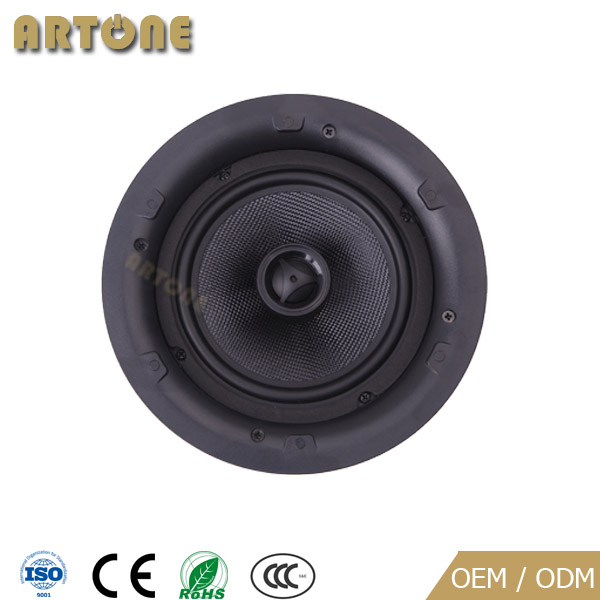

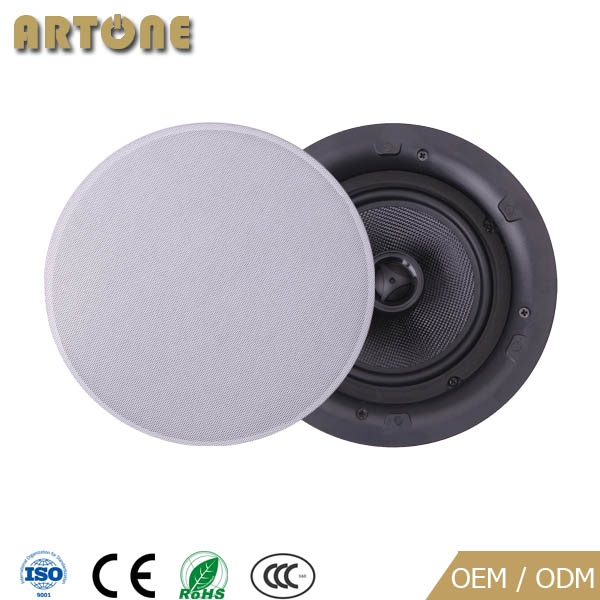

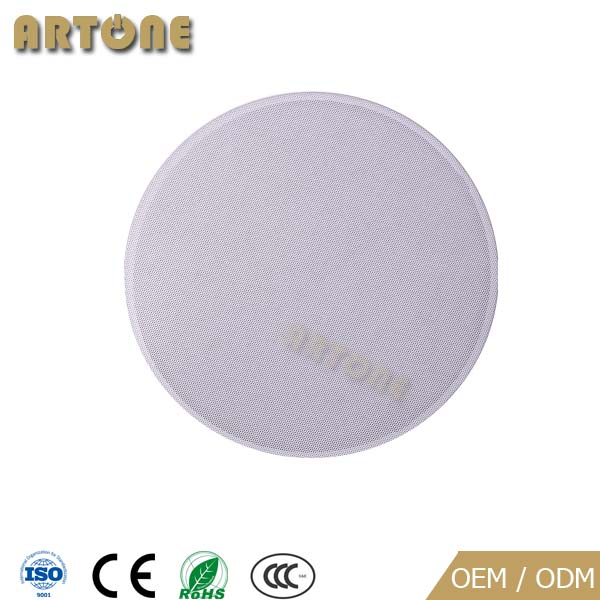

Frameless In-ceiling Speaker HC-1523Z & HC-1654Z

  • Model: HC-1523Z & HC-1654Z
  • Power:30W & 40W @ 8Ω
Details

Features:

Ceiling speaker HC-1523Z & HC-1654Z is a high quality frameless hifi inceiling speaker, designed in 2-way 5-1/4'' & 6-1/2’’ coaxial speaker, use top selected material of composite fibre woofer is able to sustain strong power from amplifier and express original sound. The state-of-art crossover makes perfect frequency separation to fibre woofer and silk tweeter. The speaker power at 30W & 40W @ 8Ω, and handling power max to 60W & 80W, frequency response 55-20KHz & 50-20KHz, sensitivity 89dB & 90dB (1W/1M), cutout size 180 & 205 mm, it is ideal speaker for use in background music application, multiroom audio system, inceiling decoration, meeting room/conference room audio purpose, etc.



Specification

Item No.

In Ceiling Speaker HC-1523Z

In Ceiling Speaker HC-1654Z

Woofer

5-1/4’’ Fabric Woofer

6-1/2’’ Fabric Woofer

Tweeter

1’’ Pivot Tweeter

1’’ Pivot Tweeter

Impedance

8Ω

8Ω

Handing Power

60W

80W

Frequency Response

55Hz~20KHz

50Hz~20KHz

Sensitivity (1W/1m)

89 dB

90 dB

Cutout Size

180 mm

205 mm
