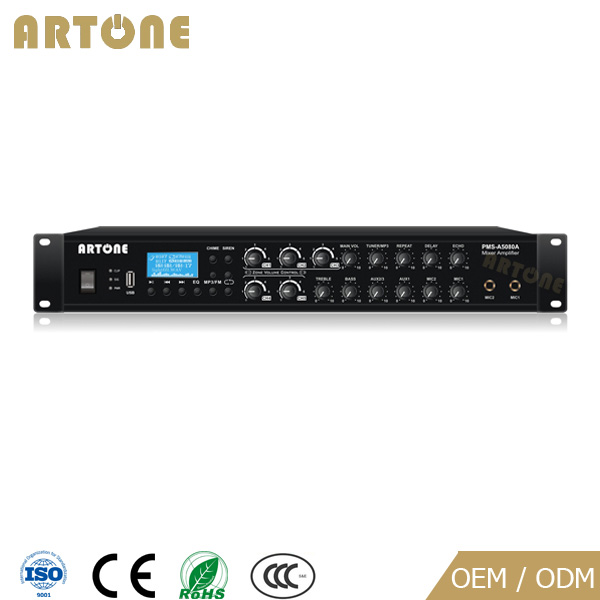

5 Zone Mixer Amplifier PMS-A5080A & PMS-A5120A & PMS-A5180A & PMS-A5240A, is a slim design commercial mixer amplifier, with built-in 80W/120W/180W/240W amplifier and 2 audio sources (USB and FM Tuner). Master volume, zone volume and tone control for power output. 3 AUX inputs, 2 MIC 6.3 Jack (MIC1 has top priority) and 1 audio output. Chime and siren for reminder before speak or urgent emergency.
Features
l Built-in USB, FM tuner and 3 external AUX inputs as audio sources;
l Strong power RMS 80W / 120W / 180W / 240W;
l Volume and tone (treble & bass) control for MP3/Tuner, AUX and MICs;
l Zone1~Zone5 volume control independently;
l LCD display of MP3 music name, time and EQ (5 modes);
l Chime and siren button for reminder;
l 4-16 ohm, 70V, 100V speaker output;
l High quality copper transformer ensures best sound performance;
l Shortcircuit, over heat, over load protection;
l Remote controller
Specification
|
Model No. |
PMS-A5080A |
PMS-A5120A |
PMS-A5180A |
PMS-A5240A |
|
Power |
80W |
120W |
180W |
240W |
|
Speaker Outputs |
4-16Ω, 70V，100V |
|||
|
Input Sensitivity |
Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:250mV/15KΩ RCA input |
|||
|
Tuner Frequency |
FM:87.5~108MHz |
|||
|
Frequency Response |
90-16KHz |
|||
|
S/N Ratio |
Mic: 66 dB | AUX: 75 dB |
|||
|
THD |
< 1% at 1KHz, 1/3 rated power |
|||
|
Audio Source |
MP3 (USB), Tuner (FM), AUX input x 3 |
|||
|
Protection |
High temperature, overload & short circuit |
|||
|
Power Supply |
220V~240V 50/60Hz or 110V |
|||
|
Material & Finish |
Aluminum front panel, metal case |
|||
|
Dimension |
486 x 310 x 70 mm |
|||
|
Weight |
5.9 kg |
7.3 kg |
8.6 kg |
9.2 kg |
