PMA-E1500 public address 500w mixer amplifier

500w mixer amplifier

Model:PMA-E1500
Power:500w
Function:mixer amplifier

Details

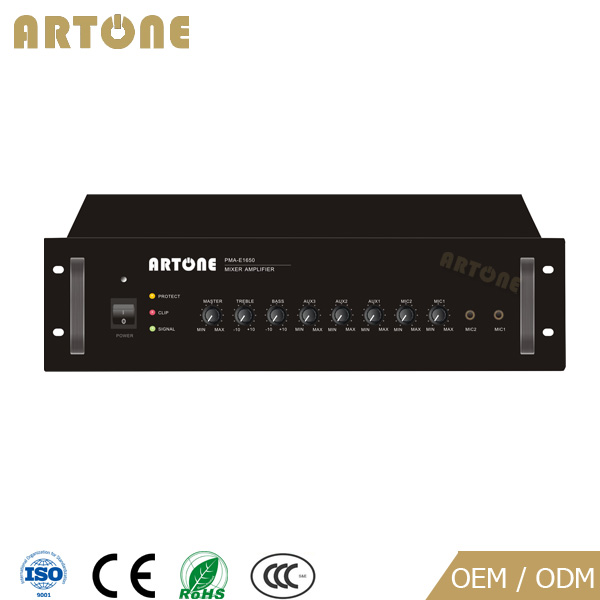

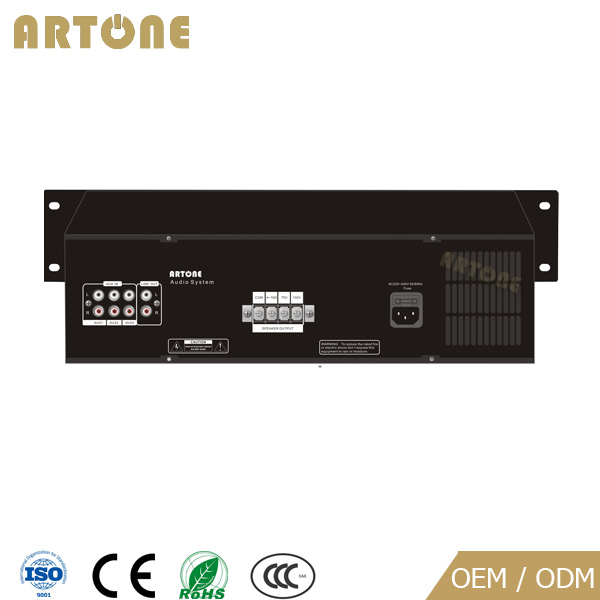

PA Mixer Amplifier is the most cost-effective choice for sound system. It is 19’’ rack mountable design with hand holder. 2 MIC inputs, 3 AUX inputs and 1 line output. Volume control for MIC inputs, AUX inputs, bass, treble and main volume. MIC1 prior to other audio inputs. The output in 4-16 ohm, 70V and 100V with fully protection of shortcircuit, overload, overheat.

Features

l Reliable pa mixer amplifier power range from 60W~650W;

l Treble, bass, microphone volume control;

l 2 Microphone inputs (6.3 jack), 3 RCA AUX inputs, 1 Line out;

l 4~16 ohm, 70V, 100V speaker output;

l Aluminium front panel, metal case;

l 19’’ rack mount design with hand holder;

l LED indicator, Shortcircuit, over heat, over load protection;

Specification

Model No.	PMA-E1060	PMA-E1120	PMA-E1180	PMA-E1240	PMA-E1300	PMA-E1360	PMA-E1500	PMA-E1650
Power	60W	120W	180W	240W	300W	360W	500W	650W
Speaker Output	4-16Ω, 70V，100V
AUX Output	600 ohms (Ω)/1V(0dBV)
Mic Input	600 ohms (Ω),10mV(-54dBV), Unbalance
Line Input	10K ohms(Ω), 250(-10dBV), Unbalance
Frequency Response	60Hz~18KHz
Distortion	﹤0.1% at 1KHz,1/3 power output
S/N	Line：70dB, Mic：66dB
Tone Adjustment	BASS:±10dB (100Hz),TREBLE:±10dB (10KHz)
Protection	AC FUSE ; DC VOLTAGE, OVERLOAD AND SHORT CIRCUIT
Power	AC 220~240V/50~60Hz
Fuse	5A	5A	8A	8A	10A	10A	12A	15A
Size	485×340×88mm				485×400×88mm
Weight	8 Kg	8.5 Kg	10 Kg	12 Kg	15 Kg	16 Kg	17.5 Kg	19.5 Kg
