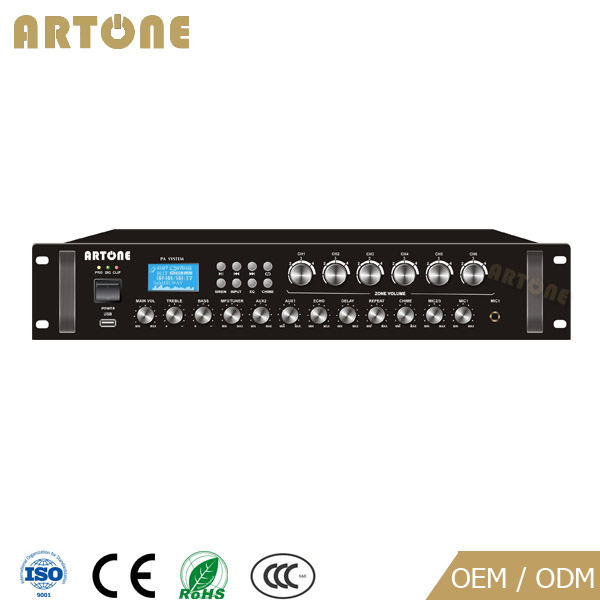

6 Zone Mixer Amplifier PMS-A6120A & PMS-A6180A & PMS-A6240A & PMS-A6360A, is a reliable commercial mixer amplifier, which built-in 120W/180W/240W/360W amplifier and 2 audio sources (USB and FM Tuner). Master volume, zone volume and tone control for power output. 2 AUX inputs, 3 MIC 6.3 Jack (MIC1 has top priority) and 1 audio output. Chime and siren for reminder before speak or urgent emergency.
Features
l Built-in USB, FM tuner and 2 external AUX inputs as audio sources;
l Strong power RMS 120W / 180W / 240W / 360W;
l Volume and tone (treble & bass) control for MP3/Tuner, AUX and MICs;
l Zone1~Zone6 volume control independently;
l LCD display of MP3 music name, time and EQ (5 modes);
l Chime and siren button for reminder;
l 4-16 ohm, 70V, 100V speaker output;
l High quality copper transformer ensures best sound performance;
l Shortcircuit, over heat, over load protection;
Specification
|
Model No. |
PMS-A6120A |
PMS-A6180A |
PMS-A6240A |
PMS-A6360A |
|
Power |
120W |
180W |
240W |
360W |
|
Speaker Outputs |
4-16Ω, 70V，100V |
|||
|
Input Sensitivity |
Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:250mV/15KΩ RCA input |
|||
|
Tuner Frequency |
FM:87.5~108MHz |
|||
|
Frequency Response |
90-16KHz |
|||
|
S/N Ratio |
Mic: 66 dB | AUX: 75 dB |
|||
|
THD |
< 1% at 1KHz, 1/3 rated power |
|||
|
Audio Source |
MP3 (USB), Tuner (FM), AUX input x 2 |
|||
|
Protection |
High temperature, overload & short circuit |
|||
|
Power Supply |
220V~240V 50/60Hz or 110V |
|||
|
Material & Finish |
Aluminum front panel, metal case |
|||
|
Dimension |
482 x 380 x 88 mm |
|||
|
Weight |
12.5 kg |
13.8 kg |
14.6 kg |
16.9 kg |
