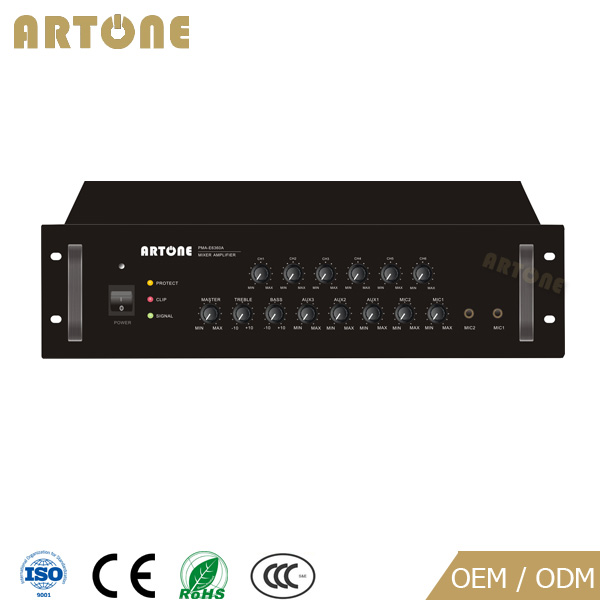

PA Mixer Amplifier is the most cost-effective choice for 6 zone sound system. It is 19’’ rack mountable design with hand holder. 2 MIC inputs, 3 AUX inputs and 1 line output. Volume control for MIC inputs, AUX inputs, bass, treble, 6 independent zone volume and main volume. MIC1 prior to other audio inputs. The output in 4-16 ohm, 70V and 100V with fully protection of shortcircuit, overload, overheat.
Features
l Reliable 6 zones pa mixer amplifier power range from 360W~1000W;
l Treble, bass, microphone and zone1-zone6 volume control;

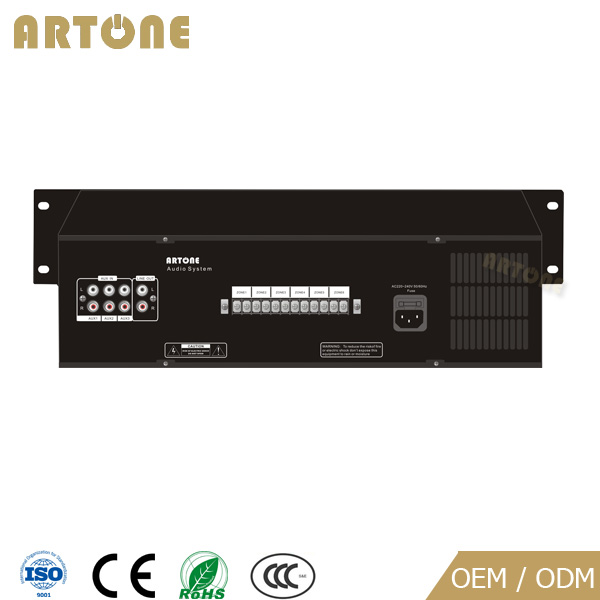

l 2 Microphone inputs (6.3 jack), 3 RCA AUX inputs, 1 Line out;
l MIC1 has top priority to mute other audio inputs;
l 4~16 ohm, 70V, 100V speaker output;
l Aluminium front panel, metal case;
l 19’’ rack mount design with hand holder;
l LED indicator, Shortcircuit, over heat, over load protection;
Specification
|
Model No. |
PMA-E6360A |
PMA-E6500A |
PMA-E6650A |
PMA-E6800A |
PMA-E6010A |
|
Power |
360W |
500W |
650W |
800W |
1000W |
|
Speaker Output |
4-16Ω, 70V，100V |
||||
|
AUX Output |
600 ohms (Ω)/1V(0dBV) |
||||
|
Mic Input |
600 ohms (Ω),10mV(-54dBV), Unbalance |
||||
|
Line Input |
10K ohms(Ω), 250(-10dBV), Unbalance |
||||
|
Frequency Response |
60Hz~18KHz |
||||
|
Distortion |
﹤0.1% at 1KHz,1/3 power output |
||||
|
S/N |
Line：70dB, Mic：66dB |
||||
|
Tone Adjustment |
BASS:±10dB (100Hz),TREBLE:±10dB (10KHz) |
||||
|
Protection |
AC FUSE ; DC VOLTAGE, OVERLOAD AND SHORT CIRCUIT |
||||
|
Power |
AC 220~240V/50~60Hz |
||||
|
Fuse |
8A |
10A |
10A |
12A |
15A |
|
Size |
485×464×132mm |
||||
|
Weight |
18 Kg |
20.5 Kg |
23 Kg |
25 Kg |
27 Kg |
