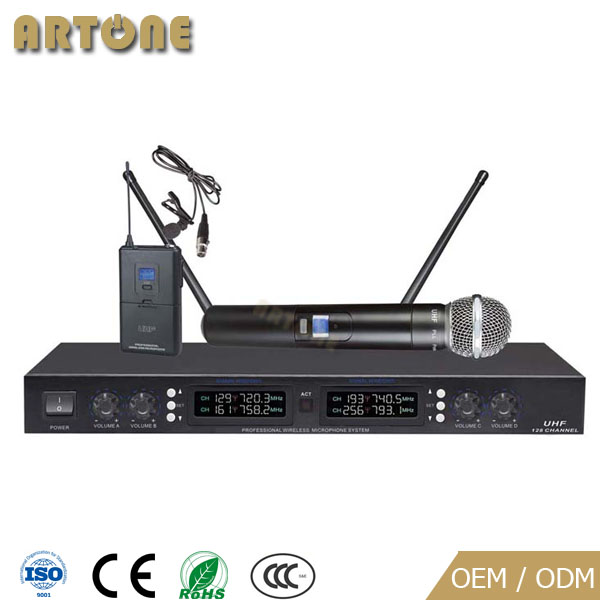

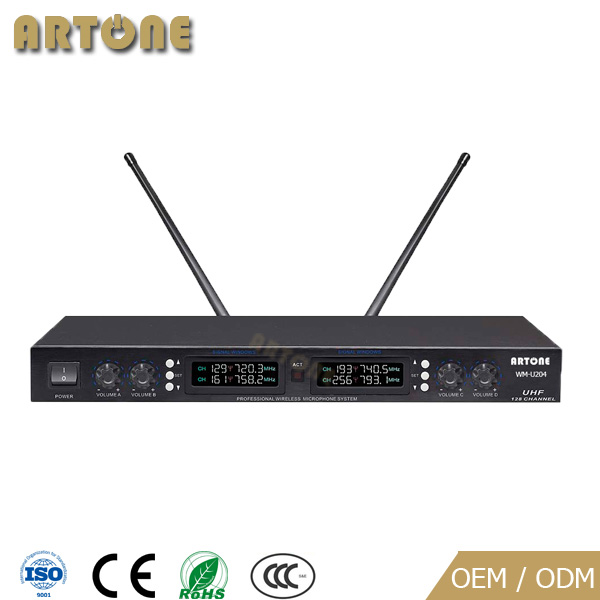

UHF Wireless Microphone WM-U204

Address: Bldg. E, Nanlang Section, Chentian, North Of Baiyun Rd., Baiyun Dist., Guangzhou, Guangdong, China

Tel: +86-20-86262440

Fax:+86-20-62351466

Email:info@ampspk.com

QQ: 2661958752

Skype: artonepro

Wechat linkARTONE

Products

Details

Features

Oscillation: PLL synthesized

Mode: 4 Channel Receiver, 32 signal channel IR pairing, 0.5MHz step per channel

Support 10 groups or 40 mic transmitters use simultaneously

Receiver LCD display shows working channel, frequency, signal indicator,

Carrier Ferquency Range：UHF 500MHz～900MHz

Frequency Stability：±0.001%

Max.eviation Range：±50KHz

Modulation Mode：FM

S/N Ratio：>105dB

T.H.D:<0.5%@1KHz

Sensitivity：1.2/UV @S/N=12dB

Power Supply：DC:12V～17V

Audio Output： Independent Free standing 0～400mV Mixed style 0～300mV

Transmitter parameter：

Power Supply：DC 3V （1.5V AA*2）

Transmitter LCD display shows working channel, frequency and battery level;

Consume an electricity: 80mA

Carry a frequency：UHF 500MHz～900MHz

Frequency stability：±25KHz

S/N Ratio：>105dB

F/N Ratio：>80dB

Dynamic range：≥100dB

Type： capacitance

polar psttern： One direction

Frequency Response：40Hz～20KHz

Sensitivity：-47±3dB@1KHz

Specification

Model No.	WM-U204
Channel	4 Channel
Mode	PLL synthesized
Frequency FM	UHF 500~900 MHz (10 groups)
Audio Output	2 balanced output and 1 mixed unbalanced output
Frequency Stability	Receiver ±0.001% / Mic: ±25KHz
S/N Ratio	>105dB
THD	<0.5%@1KHz
Power Supply	Receiver DC12~17V / Transmitter Mic DC3V (1.5V AAx2)
Mic Type	Capacitance
Mic Polar Pattern	Uni-directivity
Power Consumption	Receiver 3W / Transmitter Mic 80mA
Mic Output	10mW
Mic Battery	6 hours
Cover Distance	30 ~ 70 meter
Frequency Response	40~20KHz
Dimension	Receiver 420 x180x44 / 480x180x44mm (w rackmount kit)
Weight	Receiver 1.6 KG / Mic 390g
