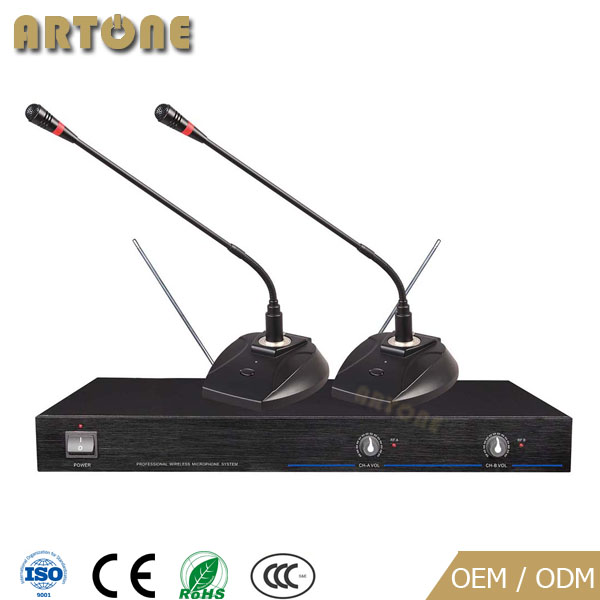

Features
*2 channels. Fixed frequency.
*8 controllers can used simultaneously.
*Front panel ：each channel has a
red RF lamp to indicate the signal.
*Back panel ：2 pull rod antennas
for signal receiving.
*Back-panel ：2 balanced output and
1 mixed unbalanced output.
*Microphone power consumption is 30mA. With a 9V
battery power supply,work constantly for 6 hours.
*Light ring on the mic head display working
status.
*Working distance: 30-70meter.
* It's suitable for various kinds of conference
and performance occasion.
Specification
|
Model No. |
CMS-V102 |
|
Channel |
Dual Channel (2 Channel) |
|
Mode |
Quartz Crystal |
|
Frequency FM |
VHF 193.0~268.6 MHz (8 groups) |
|
Audio Output |
2 balanced output and 1 mixed unbalanced output |
|
Frequency Stability |
Receiver ±0.001% / Mic: ±25KHz |
|
S/N Ratio |
>105dB |
|
THD |
<0.5%@1KHz |
|
Power Supply |
Receiver DC12~17V / Transmitter Mic 9V |
|
Mic Type |
Capacitance |
|
Mic Polar Pattern |
Uni-directivity |
|
Power Consumption |
Receiver 3W / Transmitter Mic 30mA |
|
Mic Output |
10mW |
|
Mic Battery |
6 hours |
|
Cover Distance |
30 ~ 50 meter |
|
Frequency Response |
40~20KHz |
|
Dimension |
Receiver 420 x180x44 / 480x180x44mm (w rackmount kit) / Transmitter 150x123x43mm |
|
Weight |
Receiver 1.8 KG / Mic 495g |
