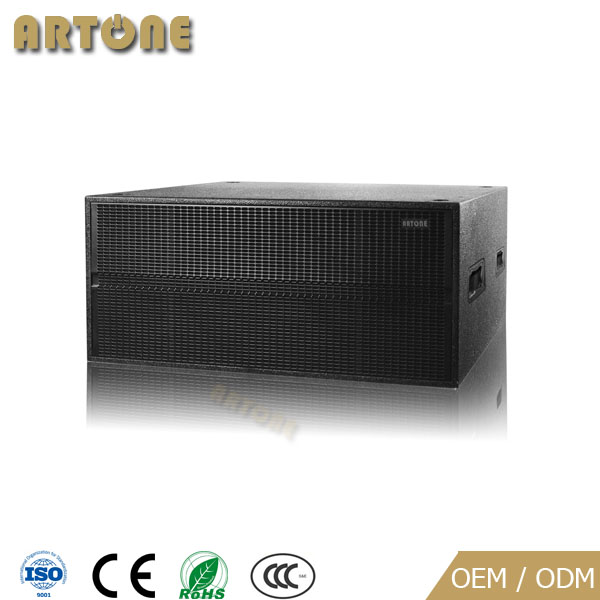

Line Array Speaker AR-218SUB

  • Model:AR-218SUB
  • Power:1600W (RMS) 3200W (PEAK)
Details

Details

ARTONE AR SERIES LINE ARRAY SYSTEM caters for sound and fashion through latest technology of audio, acoustic, mechanic in speaker design, hanging structure and sound measurement. Of course an exceptional aesthetic vision can not be spared.
Through serious and deep research, ARTONE proudly introduces its AR SERIES LINE ARRAY & MATRIX ARRAY SPEAKER SYSTEM. The advanced technologies which are widely applied together with special optimization technique results in an excellent performance and high efficiency. To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall prediction and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, ARTONE engineers know it fairly well.

Applications
Medium-large scale venues including stadium, concert hall, auditorium, theatre, Music Halls, Night clubs, Large Discotheques, touring show, rental market etc.



Features

l  DUAL 18’’ subwoofer in bass reflex enclosure

l   Ideal SPL and dynamic sound

l  High sensitivity with long range

Specification

Model No.

AR-218SUB

Frequency Response

32Hz150Hz ± 3dB

Power handling

1600W (RMS) 3200W (PEAK)

Sensitivity

112dB(1W@1M)

Max@S.P.L.

144dB(PEAK/1M)

LF section

2×18"(460mm) woofer

Nominal impedance

4 ohm

Speaker cables

1(+)1(-)

Input connectors

2×NL4MP speakon

Dimensions

1080×504×870mm(W×H×D)

Package dimensions

1150×575×940mm/0.63cbm

Enclosure

Plywood

Net weight

96kg

Gross weight

99kg
