Details
ARTONE

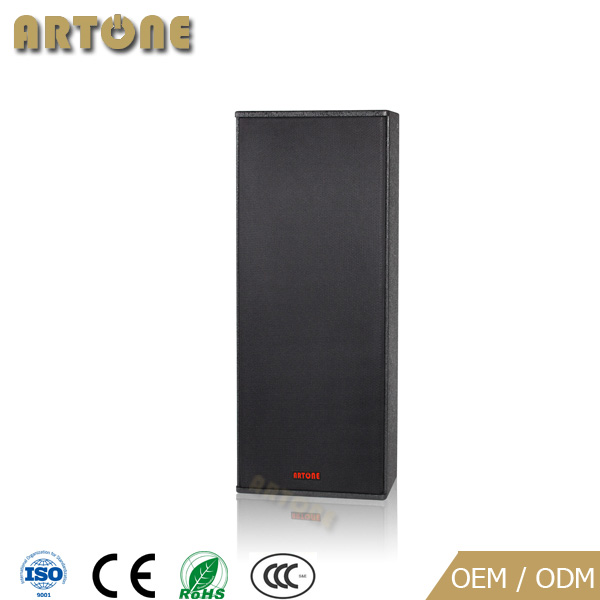

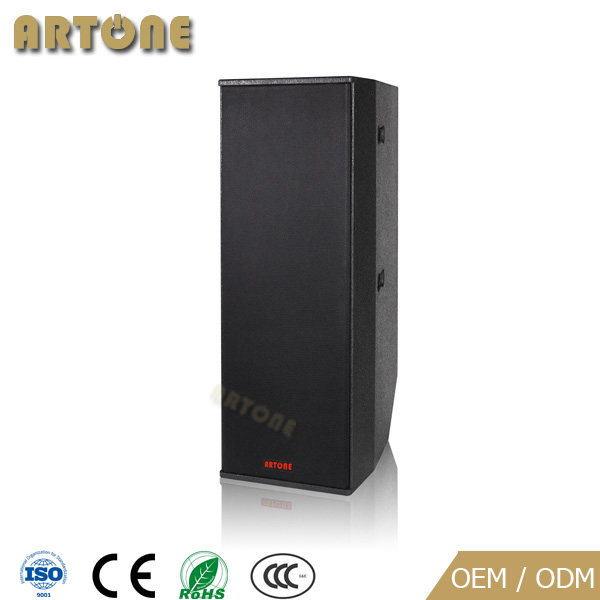

BT series speakers use a variety of techniques of multi-function amplification
system, they can meet the demand perfectly and maintain ARTONE system concept.
BT series adopts high sensitivity driver, collect with luxuriant appearance
design concept, making BT series speakers applied to the fixed installation,
music, theatre, language, and the most ideal performance.
Meanwhile, amazing SPL, maintain the lightweight of the system, are the big
features of BT.
Applications
It is sophisticatedly designed and ideal for Theatres, Music Halls, Large
Discotheques, Night Clubs, KTV rooms, touring events etc.
Features
l Multi-functional enclosure designed
l High sensitivity and transparent sound quality
l Providing ideal SPL and dynamic sound
l Quality NL4MP professional connectors applied ensuring a direct and stable signal transmission.
l Innovative mounting hole for easy hanging and installation
l Using advanced painting
Specifications
Model No. |
BT-725A |
Frequency Response |
46Hz-20kHz ± 3dB |
Power handling |
1200W (RMS) 2400W (PEAK) |
Sensitivity |
103dB(1W@1M) |
Max@S.P.L. |
134dB(PEAK/1M) |
LF section |
2×15"(380mm) woofer |
Nominal impedance |
4 ohm |
HF section |
3"compression driver |
Nominal impedance |
8 ohm |
Dispersion |
80°H×50°V |
Speaker cables |
1(+)1(-) |
Input connectors |
2×NL4MP speakon |
Dimensions |
445×1150×560mm(W×H×D) |
Package dimensions |
505×1200×600mm/0.31cbm |
Enclosure |
Plywood |
Net weight |
54kg |
Gross weight |
57kg |
