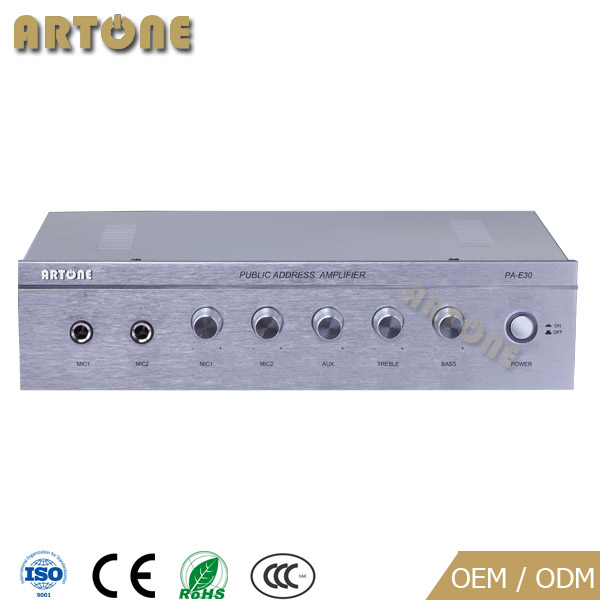

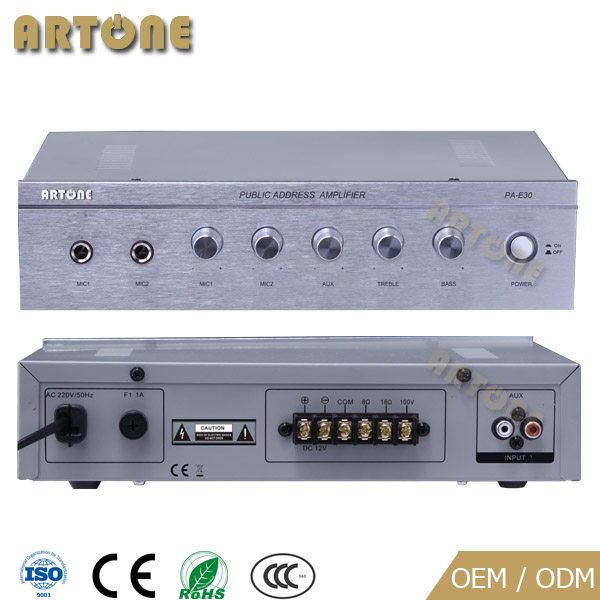

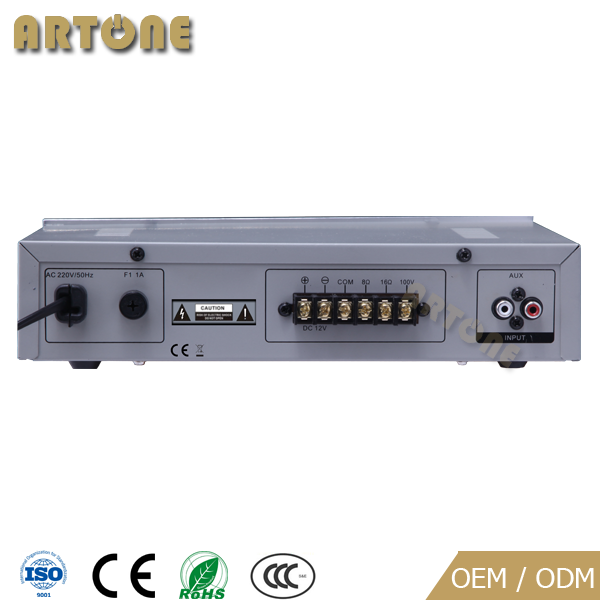

PA-E30 Small Economy PA Mixer Amplifier with DC12V input

Address: Bldg. E, Nanlang Section, Chentian, North Of Baiyun Rd., Baiyun Dist., Guangzhou, Guangdong, China

Tel: +86-20-86262440

Fax:+86-20-62351466

Email:info@ampspk.com

QQ: 2661958752

Skype: artonepro

Wechat linkARTONE

Products

1.Mini Amplifier 2.DC 12V

Details

Features

l Small and compact design, 1 external AUX input and 2 Mic inputs;

l Strong power RMS 30W, max power at 60W;

l 4-16 ohm, 70V, 100V speaker output;

l Treble, bass, mic and master volume control

l High quality copper transformer ensures best sound performance;

l Shortcircuit, over heat, over load protection;

l AC 220-240V and DC12V input power supply;

Specification

Model No.	PA-E30
Power	30W
Speaker Outputs	4-16Ω, 70V, 100V
Input Sensitivity	Mic: 5mV/600Ω unbalanced 6.3mm phone jack input \| AUX:350mV/10KΩ RCA input
Output Sensitivity & Impedance	1000mV/470Ω, Unbalanced RCA output
Frequency Response	30-20KHz
S/N Ratio	Mic: 66 dB \| AUX: 80 dB
THD	< 1% at 1KHz, 1/3 rated power
Protection	High temperature, overload & short circuit
Power Supply	220V~240V 50/60Hz or 110V / DC 12V supply
Material & Finish	Aluminum front panel, metal case
Dimension	280 x 190 x 70 mm
Weight	3.6 kg
