Features
l 6、8、12 Balance microphone input and 2 stereo input
l High quality, low noise microphone input
l Low-noise preamplifier with strong anti-jamming power
l High quality +48V phantom power for microphone input
l Equipped with Signal insertion point offered by high-end
l mixing console, convenient to connect with externalsignal processor.
l 3-band EQ with swept MF which can be adjusted from 140Hz to 3 KHz, England style
l 2 groups of AUX output, optional for pre fader or post fader
l With 16 kinds of delay effect processor
l Unique double-ended SMT circuit designing, guarantees stable and reliable performance
l 100MM high level analysis fader
l MP3 player with USB input
Specification
|

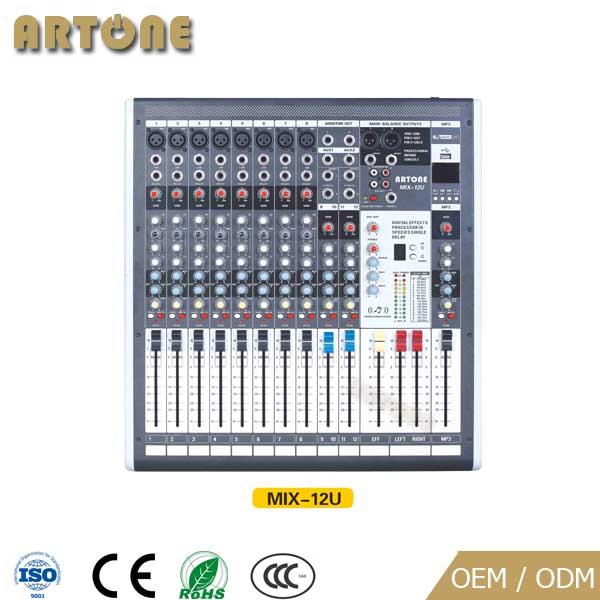

Model No. |
MIX-12U |
|
Total Harmonic distortion |
<-0.005% |
|
Frequency Response |
20Hz-20KHz+1dB /-3dB
|
|
Max output level |
18dBm (1 KHz, THD=0.5%) |
|
S/N Ratio |
-81 dB |
|
Gain Control |
Mono -51dB~0dB; Stereo -26dB~0dB |
|
Residual output noise |
<-83dBu |
|
Crosstalk |
<-79dBu |
|
Earphone output power |
260mW(1KHz,THD=0.5%，200Ω) |
|
EQ |
LF 80Hz±15dB; MF 250Hz~6KHz±15dB; HF 12KHz±15dB
|
|
MIC input |
2.4KΩ |
|
Input & output impedance |
Mono input 11 KΩ; Stereo input 100 KΩ |
|
Impedance output |
≤75Ω |
|
Power consumption |
30W |
