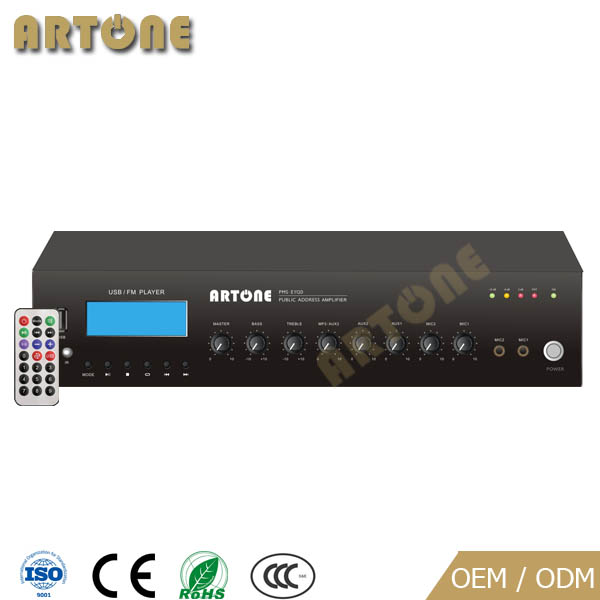

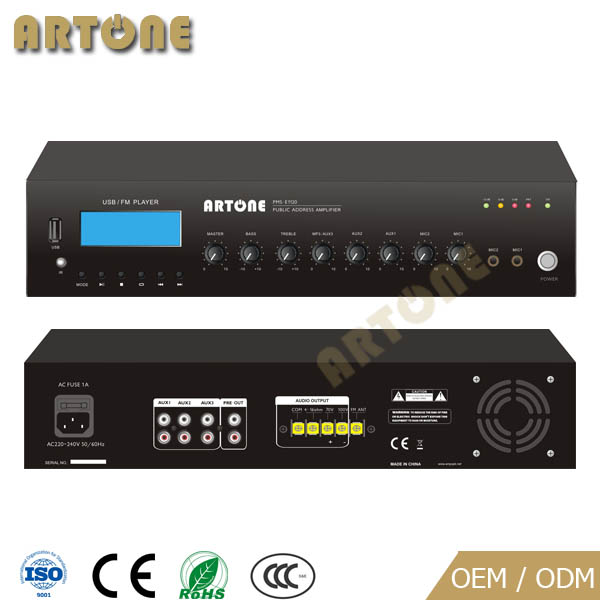

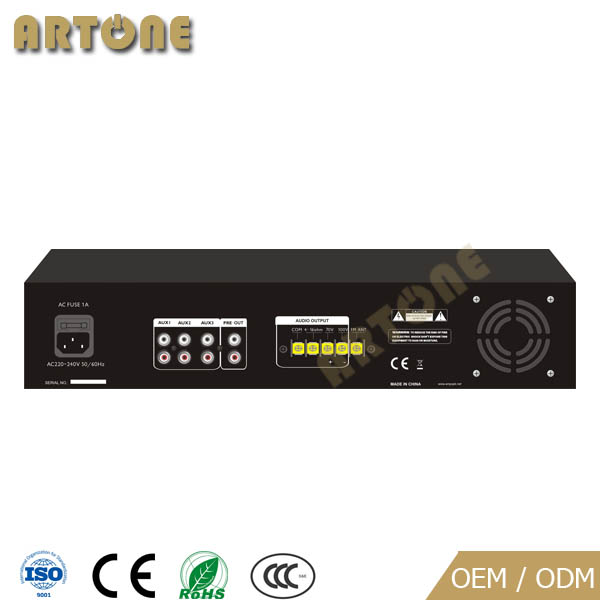

Features
l Economy design, built-in USB, FM tuner and 3 external AUX inputs as audio sources;
l Power RMS 60W, 120W and 180W;
l 4-16 ohm, 70V, 100V speaker output;
l Mic1-2, AUX1-3, MP3, treble, bass, and master volume control;
l High cost-effective for budget audio projects;
l Shortcircuit, over heat, over load protection;
l AC 220-240V power supply;
l Remote controller
Specification
|
Model No. |
PMS-E1060 |
PMS-E1120 |
PMS-E1180 |
||
|
Power |
60W |
120W |
180W |
||
|
Speaker Outputs |
4-16Ω, 100V |
||||
|
Input Sensitivity |
Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input |
||||
|
Frequency Response |
60-20KHz |
||||
|
S/N Ratio |
Mic: 66 dB | AUX: 80 dB |
||||
|
THD |
< 1% at 1KHz, 1/3 rated power |
||||
|
Audio Source |
MP3 (USB), FM Tuner, RCA AUX, 6.35mm MIC input |
||||
|
Protection |
High temperature, overload & short circuit |
||||
|
Power Supply |
220V~240V 50/60Hz or 110V |
||||
|
Material & Finish |
Aluminum front panel, metal case |
||||
|
Dimension |
485 x 380 x 80 mm |
||||
|
Weight |
5.2 kg |
7 kg |
8.5 kg |
||
