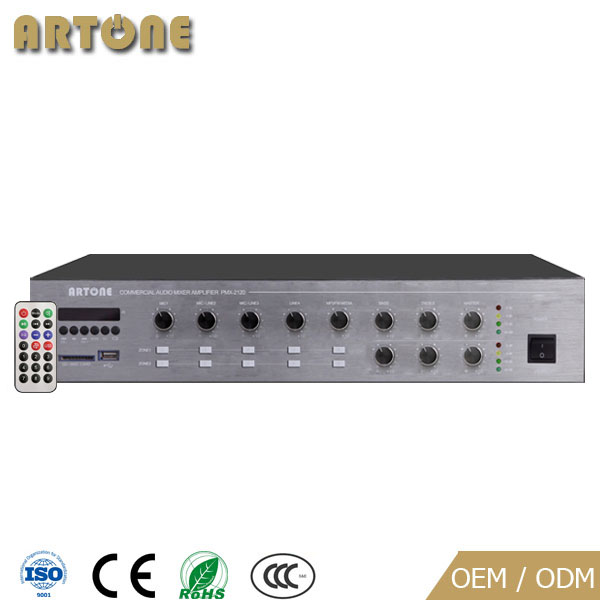

PMX-2060 (60W X 2) and PMX-2120 (120W X 2) are 2 zone matrix PA mixer amplifier, with built-in MP3, FM and Bluetooth player, distribute same or different audio to separated zone. It is ideal to use in stores, markets, school, mosque or church place for public address paging and background music system.
Features
lBuilt-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs (rear RCA) as audio sources, audio sources switchable from each other;
lStrong power RMS 60Wx2 and 120Wx2;
l2 zone matrix amplifier, distribute same or different audio to separated zone;
l4-16 ohm, 70V, 100V speaker output;
lTreble, bass and master volume control;
lHigh quality copper transformer ensures best sound performance;
lLED indicator, Shortcircuit, over heat, over load protection;
lAC 220-240V input power supply;
lRemote controller
Specification
|
Model No. |
PMX-2060 |
PMX-2120 |
|
Power |
60W X 2 |
120W X 2 |
|
Speaker Outputs |
4-16Ω, 70V, 100V |
|
|
Input Sensitivity |
Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input |
|
|
Output Sensitivity & Impedance |
1000mV/470Ω, Unbalanced RCA output |
|
|
Frequency Response |
30-20KHz |
|
|
S/N Ratio |
Mic: 66 dB | AUX: 80 dB |
|
|
THD |
< 1% at 1KHz, 1/3 rated power |
|
|
Audio Source |
MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2 |
|
|
Protection |
High temperature, overload & short circuit |
|
|
Power Supply |
220V~240V 50/60Hz or 110V |
|
|
Material & Finish |
Aluminum front panel, metal case |
|
|
Dimension |
485 x 300 x 88 mm |
|
|
Weight |
10.4 kg |
14.6 kg |
