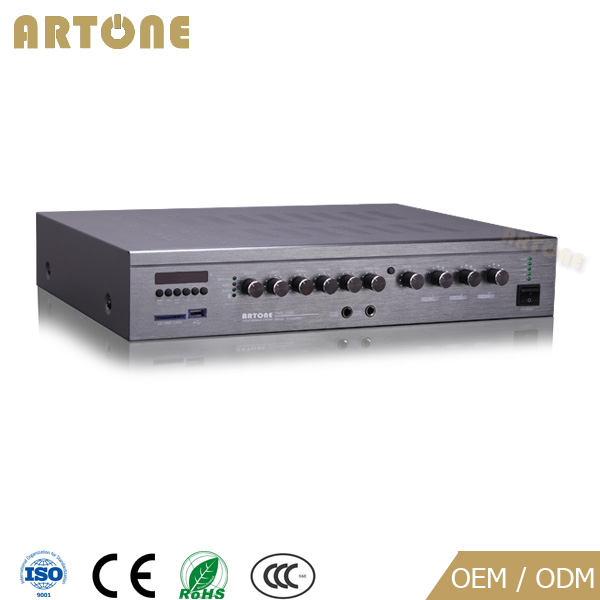

3 zone mixer amplifier PMS-3300, is a versatile commercial audio system, with built-in 240W amplifier and as many as 4 audio sources (USB / SD card / FM Tuner / Bluetooth). Independent volume control for 3 separate zone. 2 AUX inputs and 2 MIC 6.3 Jacks. Chime button able to set reminder before paging or speak.
Features
l Built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs as audio sources, audio sources switchable from each other;
l Strong power RMS 300W, max power at 500W;
l 3 zone independent volume control;
l Soft power start up;
l 4-16 ohm, 70V, 100V speaker output;
l Treble, bass, mic and master volume control
l High quality copper transformer ensures best sound performance;
l Reminder melody chime button;
l LED indicator, Shortcircuit, over heat, over load protection;
l Remote controller
Specification
|
Model No. |
PMS-3300 |
|
Power |
300W |
|
Speaker Outputs |
4-16Ω, 70V, 100V |
|
Input Sensitivity |
Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input |
|
Output Sensitivity & Impedance |
1000mV/470Ω, Unbalanced RCA output |
|
Frequency Response |
30-20KHz |
|
S/N Ratio |
Mic: 66 dB | AUX: 80 dB |
|
THD |
< 1% at 1KHz, 1/3 rated power |
|
Audio Source |
MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2 |
|
Protection |
High temperature, overload & short circuit |
|
Power Supply |
220V~240V 50/60Hz or 110V |
|
Material & Finish |
Aluminum front panel, metal case |
|
Dimension |
485 x 380 x 80 mm |
|
Weight |
12 kg |
