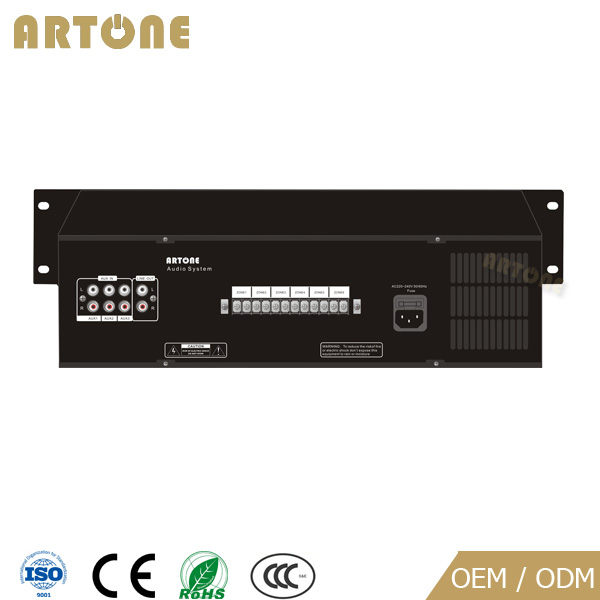

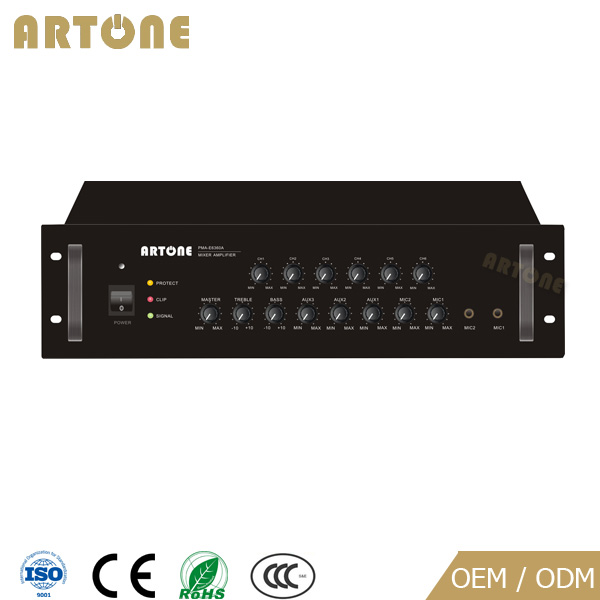

PMA-E6360A Public Address 360w 6 Zone Mixer Amplifier

Address: Bldg. E, Nanlang Section, Chentian, North Of Baiyun Rd., Baiyun Dist., Guangzhou, Guangdong, China

Tel: +86-20-86262440

Fax:+86-20-62351466

Email:info@ampspk.com

QQ: 2661958752

Skype: artonepro

Wechat linkARTONE

Products

360w 6 Zone Mixer Amplifier

Details

Features

l Reliable 6 zones pa mixer amplifier power range from 360W~1000W;

l Treble, bass, microphone and zone1-zone6 volume control;

l 2 Microphone inputs (6.3 jack), 3 RCA AUX inputs, 1 Line out;

l MIC1 has top priority to mute other audio inputs;

l 4~16 ohm, 70V, 100V speaker output;

l Aluminium front panel, metal case;

l 19’’ rack mount design with hand holder;

l LED indicator, Shortcircuit, over heat, over load protection;

Specification

Model No.	PMA-E6360A	PMA-E6500A	PMA-E6650A	PMA-E6800A	PMA-E6010A
Power	360W	500W	650W	800W	1000W
Speaker Output	4-16Ω, 70V，100V
AUX Output	600 ohms (Ω)/1V(0dBV)
Mic Input	600 ohms (Ω),10mV(-54dBV), Unbalance
Line Input	10K ohms(Ω), 250(-10dBV), Unbalance
Frequency Response	60Hz~18KHz
Distortion	﹤0.1% at 1KHz,1/3 power output
S/N	Line：70dB, Mic：66dB
Tone Adjustment	BASS:±10dB (100Hz),TREBLE:±10dB (10KHz)
Protection	AC FUSE ; DC VOLTAGE, OVERLOAD AND SHORT CIRCUIT
Power	AC 220~240V/50~60Hz
Fuse	8A	10A	10A	12A	15A
Size	485×464×132mm
Weight	18 Kg	20.5 Kg	23 Kg	25 Kg	27 Kg
