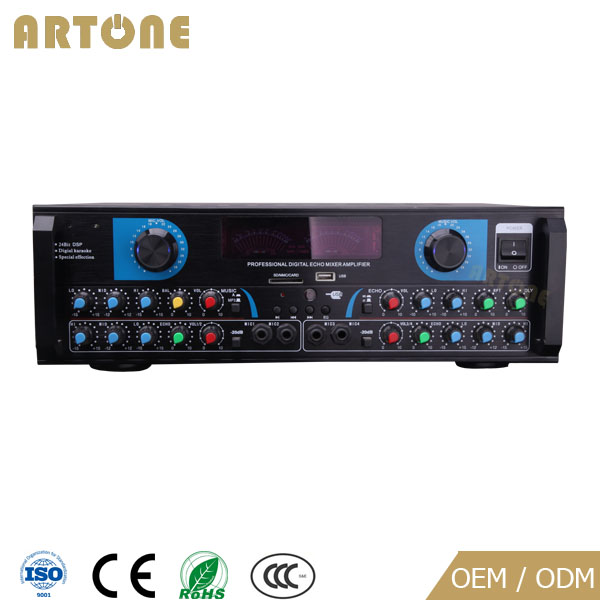

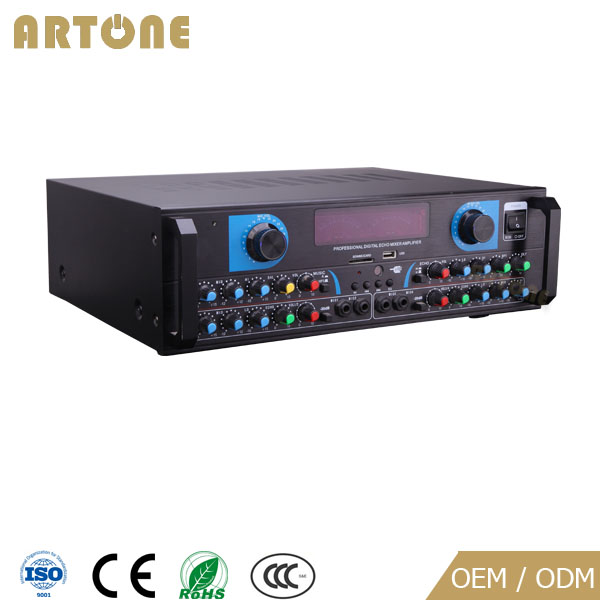

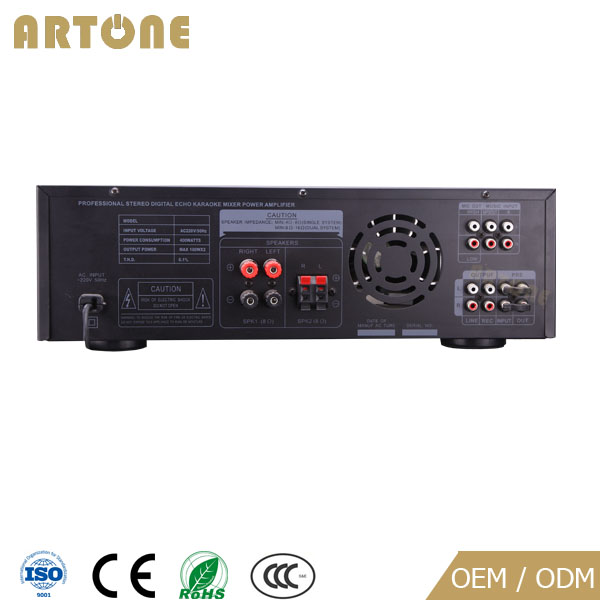

KPA-501 USB SD Card Stereo Audio Karaoke Amplifier

1.Built-in USB/SD card 2.one AUX inputs and four microphone inputs
  • Model:KPA-501
  • Power:120W x 2
Details

Stereo Amplifier KPA-501 is ideal to use in the shops, small supermarkets, classrooms, karaoke with its built-in USB/SD slot, 1 AUX inputs and 4 microphone inputs. Volume control for low frequency, middle frequency, high frequency, balance and main volume for music at RMS power of 120Wx2. Specific microphone volume control of low frequency, middle frequency, high frequency, and echo, there’s 20dB can be increased/decreased to give more precise performance. Echo also can be controlled independently of low frequency, middle frequency, high frequency and delay. 4 low impedance speakers can make better surround sound.

Features

l  Built-in USB/SD card slot, 1 auxiliary audio inputs switch;

l  MIC1, MIC2, MIC3, MIC4 total 4 jack 6.3mm microphone inputs;

l  Volume control for music’s low frequency, middle frequency, high frequency and balance;

l  Volume control for microphones’ low frequency, middle frequency, high frequency and echo;

l  Echo control for low frequency, middle frequency, high frequency and delay;

l  2 Pairs of speaker in low impedance can be connected to deliver better stereo sound;

l  High quality copper transformer ensures best sound performance at 120Wx2 power;

Specification

Model No.

KPA-501

Power

120W x 2

Input Sensitivity

Mic: 10mV/600Ω unbalanced 6.3mm jack input | AUX:250mV/10KΩ RCA input

Frequency Response

20-20KHz

S/N Ratio

Mic: 90 dB | AUX: 95 dB

THD

< 1% at 1KHz, 1/3 rated power

Volume

Bass: ±10 dB  / Treble: ±10 dB

Power Supply

220V~240V 50/60Hz or 110V

Material & Finish

Black color

Dimension

430 x 320 x 126 mm

Weight

8.5 kg
