Best multiple 4 channel 1U tabletop power amplifier pro audio 100W mini class D amp receiver PD-410D

ARTONE 4CH power amplifier PD-410D is a compact design and low weight half of 1U size Class-D professional audio amp system. The four channel audio receiver gives power 100W x 4 at 8 ohm, and 180W x 4 at 4 ohm. The China customized made power amplifier supports independent input and output in factory, versatile mounting kits makes amplifier installed as full 1u height devices into 19-inch rack, and can be set on the table or under desk, and even wall mounting for professional audio or commercial sound system.
  • Model:1U Multiple 4CH Amplifier Tabletop Class-D Pro-audio PD-410D
  • Power:4x100W @ 8Ω / 4x180W @4Ω
  • Function:Mini tabletop 4 channel amplifier, Compact and small design, high efficient Class-D amplifier

1U Tabletop 4CH Power Amplifier for Multiple Channel 100W Pro Audio Mini Amp Receiver PD-410D

China ARTONE four channel power amplifier PD-410D is a small, compact and mini design 1U heigh tabletop professional audio amp and receiver with 100W per channel. It is reliable highly integrated class-D amplifier to boost 4 speakers or more speakers, with high efficient amplify circuit up to RMS 100W to each channel.

The 4CH power amplifier PD-410D can be set on table-top or make into standard 19'' rack mount type pro audio way. It is combo amp that can be connected together as a standard 1U rackmountable device. Independent input available for each channel or link by switches from rear panel.

Quality components and advanced circuit allows 4 channel amp PD-410D output sufficient power and high quality sound for conference room, meeting room, multi-media room, mosque or religious place, flagship store, showroom, gym area, school and classroom, party show, etc. It is a good choice for commercial audio or professional sound system.

Small and compact design

Tabletop and mini design 4-channel power amplifier in small size and only 214 x 260 x 44 mm, the height of amp is standard 1U only, and overall is at half of 1U size.

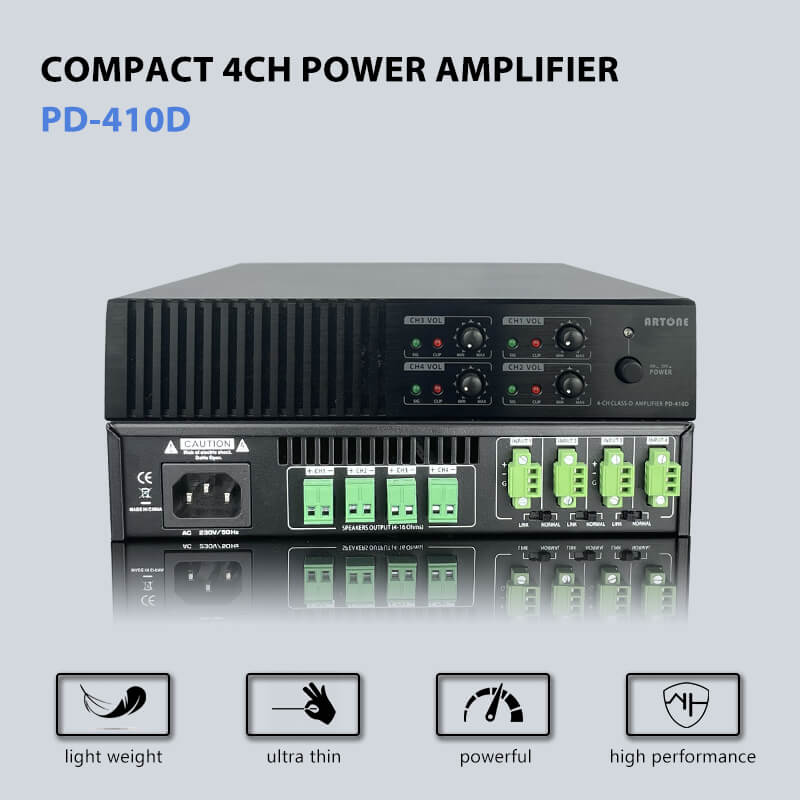

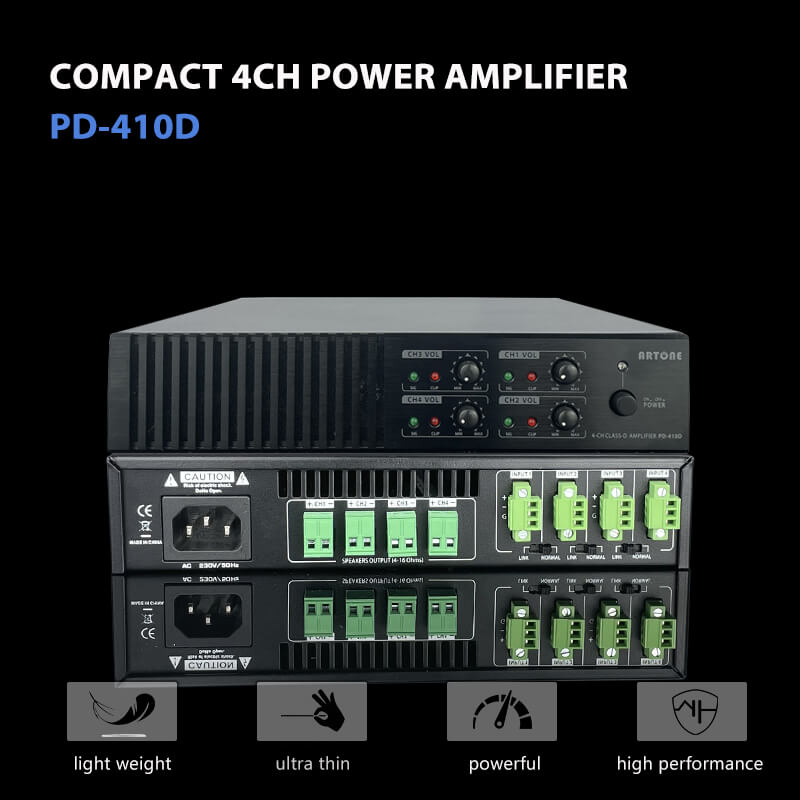

Four channel inputs and outputs

The PD-410 has independent input for each of 4 bus outputs, it distribute 100w power to each channel and connect 4~8 ohm speakers. A link switch between channel allows input signal connected, makes different amplifier channel use at the same time.

Audio control

Quality potentiometer adopted for individual 4 channel, volume control can be adjusted by 4 independent volume knob.

Install audio and application

Thanks for the compact design of amplifier, the PD-410D is able to be used alone and set on the desk-top or under the desk or even mounting on the wall, 2 sets PD-410D also can be connected into standard full 1U professional audio device.With half of 1u size of the amp, many install possibility can be realized by user.


- High efficient class-D 4 channel amplifier with power 100W x 4 at 8 ohm;

- Small and mini amplifier at half of 1U size;

- Independent inputs and outputs;

- Phoenix (euroblock) inputs connector and signal link switches;

- Screw terminal for speaker connection;

- High quality low impedance for 4~8 ohm speaker system;

- Perfect sound for both music and people speech;

- LED indicator of signal and clip for each channel;

- Full protection of electric circuits


Model No.

Tabletop 4-Channel Power Amplifier PD-410D

Power (8Ω)

RMS 100W x 4

Power (4Ω)

RMS 180W x 4

Speaker Outputs


Amplification Type

Class-D Amplification

Frequency Response


Input Sensitivity

0.775V @ 8Ω

THD (1KHz, 1/3 rated power)

<0.02% @ 8Ω

S/N Ratio

>105 dB at 1KHz

Input Impedance

Unbalanced >10KΩ, balanced >20KΩ

Input Connector

Phoenix connect x 4

Output Connector

Screw terminals


High temperature, overload & short circuit

Power Supply

220V~240V 50/60Hz

Material & Finish

Aluminum front panel, metal case


214 x 260 x 44 mm


2.55 kg
