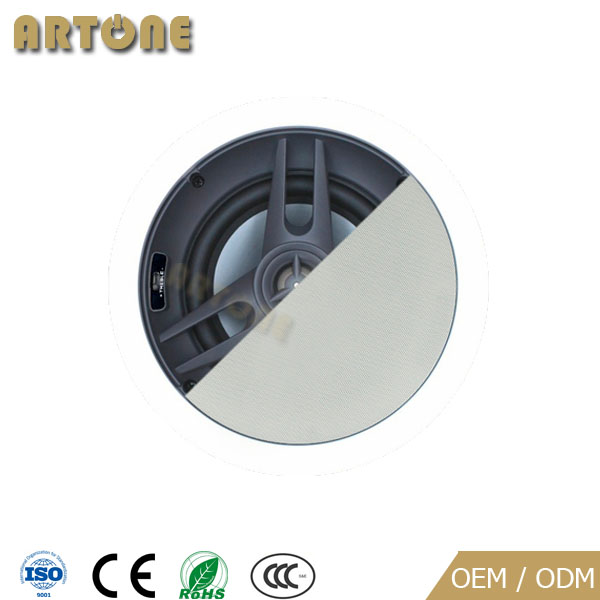

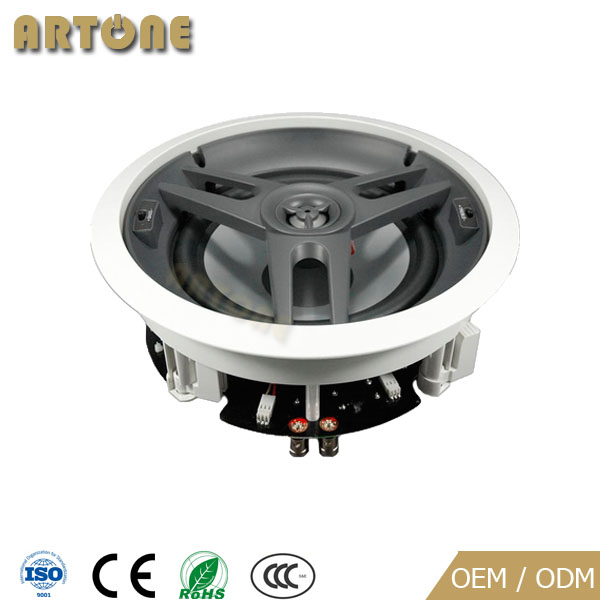

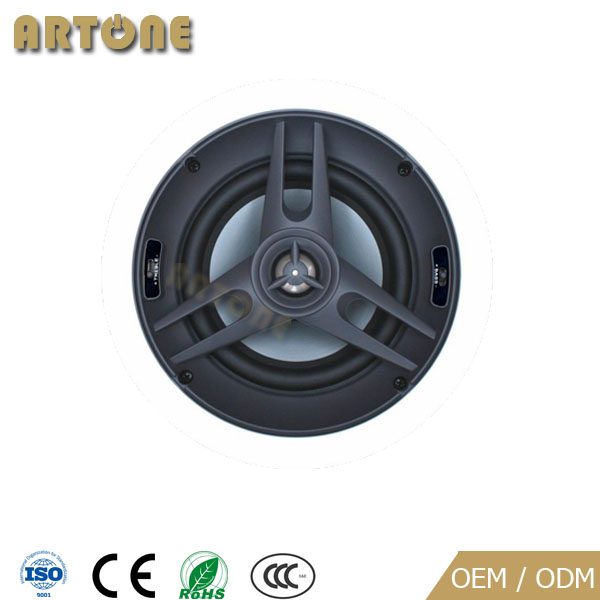

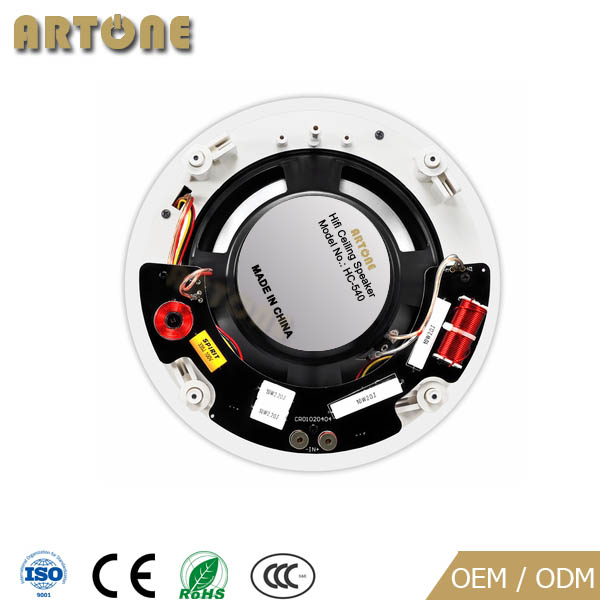

Inceiling Speaker HC-540 & HC-640 & HC-840

  • Model:HC-540 & HC-640 & HC-840
  • Power:25W & 35W & 45W @ 8Ω
Details

Features:

Ceiling speaker HC-540 & HC-640 & HC-840 is a high quality 2-way hifi inceiling speaker, designed in 5-1/4'' & 6-1/2’’ & 8’’ speaker with 1’’ tweeter, use top selected material of polypropylene woofer and titanium tweeter is able to sustain strong power from amplifier and express original sound. The state-of-art crossover makes perfect frequency separation to woofer and tweeter. The speaker power at 25W & 35W & 45W @ 8Ω, and handling power max to 75W & 100W & 125W, frequency response 55-20KHz & 50-20KHz & 45-20KHz, sensitivity 90dB & 91dB & 92dB (1W/1M), cutout size 165 & 200 & 250 mm, it is ideal speaker for use in background music application, multiroom audio system, inceiling decoration, meeting room/conference room audio purpose, etc.



Specification

Item No.

HC-540

HC-640

HC-840

Woofer

5.25’’ Polypropylene Woofer

6.5’’ Polypropylene Woofer

8’’ Polypropylene Woofer

Tweeter

1’’ titanium Tweeter

1’’ titanium Tweeter

1’’ titanium Tweeter

Impedance

8Ω

8Ω

8Ω

Handing Power

75W

100W

125W

Frequency Response

55Hz~20KHz

50Hz~20KHz

45Hz~20KHz

Sensitivity (1W/1m)

90 dB

91 dB

92 dB

Cutout Size

165 mm

200 mm

250 mm
