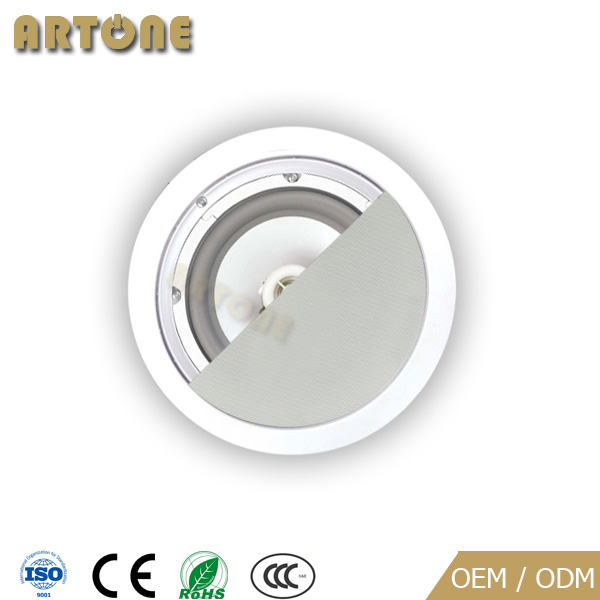

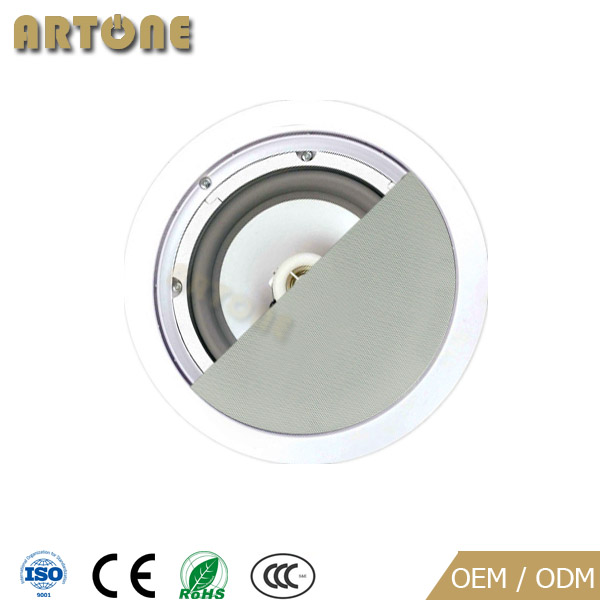

Waterproof ceiling Speaker HC-600R & HC-800R

  • Model:HC-600R & HC-800R
  • Power:20W & 30W @ 8Ω
Details

Features:

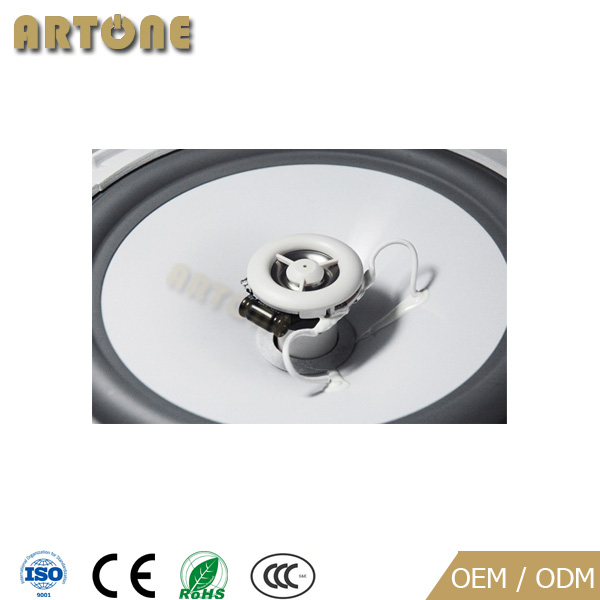

Ceiling speaker HC-600R & HC-800R is a weather resistant ceiling speaker, designed in 2-way coaxial 6-1/2’’ & 8’’ speaker, it is adpot special made waterproof material of polypropylene woofer with polycarbonate tweeter. The state-of-art crossover makes perfect frequency separation to woofer and tweeter. The speaker power at 20W & 30W @ 8Ω, and handling power max to 80W & 100W, frequency response 55-20KHz & 48-20KHz, sensitivity 89dB & 90dB (1W/1M), cutout size 193 & 236 mm, it is ideal speaker for use in background music application, multiroom audio system, bathroom, patio or balcony, outdoor ceiling audio purpose, etc.



Specification

Item No.

In Ceiling Speaker HC-600R

In Ceiling Speaker HC-800R

Woofer

6.5’’ Polypropylene Woofer

8’’ Polypropylene Woofer

Tweeter

1’’ Polycarbonate Tweeter

1’’ Polycarbonate Tweeter

Impedance

8Ω

8Ω

Handing Power

80W

100W

Frequency Response

55Hz~20KHz

48Hz~20KHz

Sensitivity (1W/1m)

89 dB

90 dB

Cutout Size

193 mm

236 mm
