Details

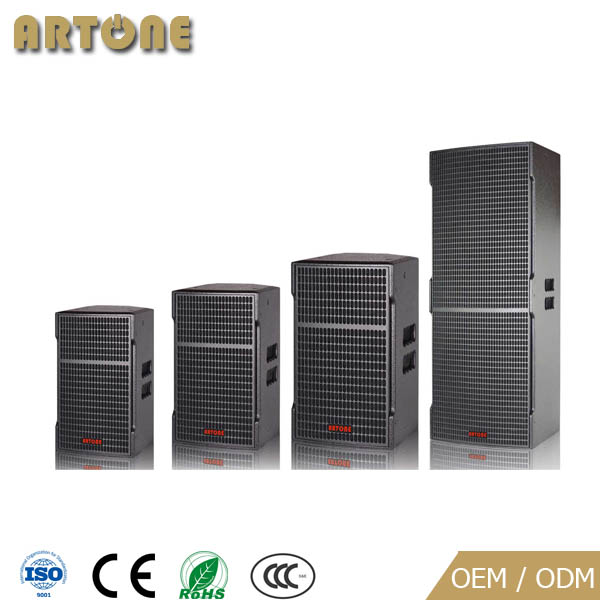

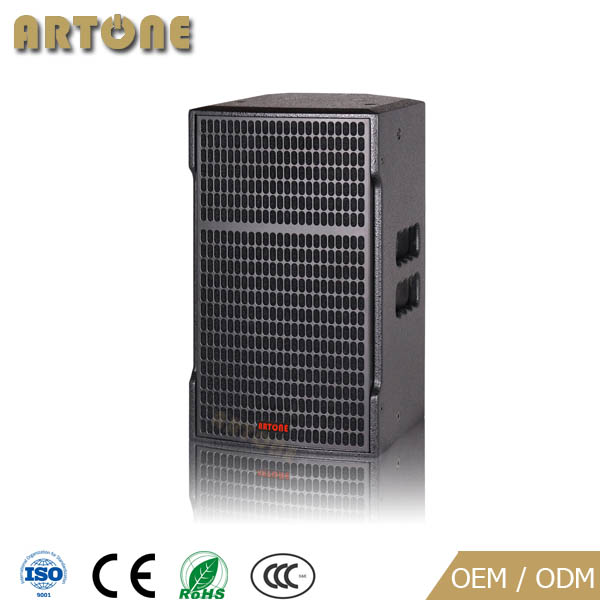

CT-Series is designed for engineering and entertainment
project with carefully crafted works, high-frequency transparent and bright,
low-frequency elasticity and strength are very outstanding projection, high
frequency thick, easily into the microphone, professional speaker style, card
pack delicate timbre, with crankcase sound, singing performances tilapia.
Optimized for entertainment sense of hearing divider circuit using imported
high capacitance and inductance imports of large diameter hollow.
Carefully optimized bass tuning system has a higher efficiency inverter to
optimize the low frequency response, greatly reducing wind noise caused by
inverting the tube, making the bass more solid and pure.
ARTONE unique box structure to strengthen the technology effectively reduce
unwanted cabinet resonance and reduce harmful bass, the sound is more clean,
more efficient overall output, making sense of hearing more natural, true!
Application areas
KTV, bars, clubs, nightclubs, dance halls, banquet halls, function rooms and
other places.
Specification
Model No. |
CT-10 |
Frequency Response |
80Hz-20kHz ± 3dB |
Power handling |
200W (RMS) 400W (PEAK) |
Sensitivity |
95dB(1W@1M) |
Max@S.P.L. |
118dB(PEAK/1M) |
LF section |
10"(260mm) woofer |
Nominal impedance |
8 ohm |
HF section |
1.4"driver |
Nominal impedance |
8 ohm |
Dispersion |
90°H×45°V |
Speaker cables |
1(+)1(-) |
Input connectors |
2×NL4MP speakon |
Dimensions |
295×514×340mm(W×H×D) |
Package dimensions |
365×585×410mm/0.09cbm |
Enclosure |
HDF |
Net weight |
14 kg |
Gross weight |
16 kg |
