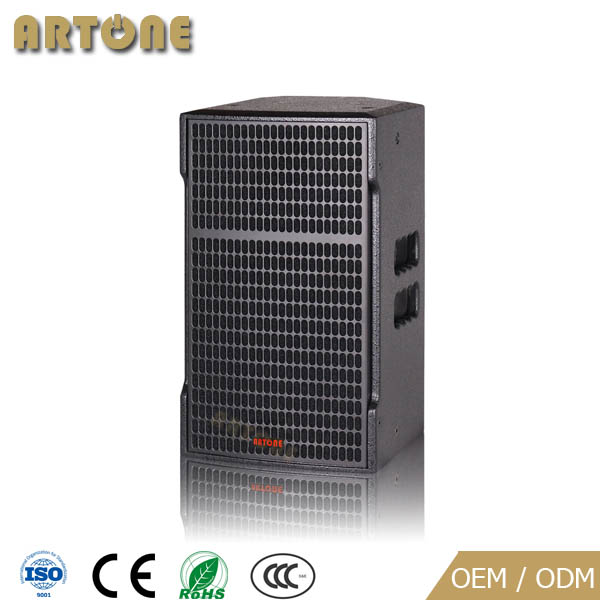

Professional Speaker CT-12

  • Model:CT-12
  • Power:300W (RMS) 600W (PEAK)
Details

Details

CT-Series is designed for engineering and entertainment project with carefully crafted works, high-frequency transparent and bright, low-frequency elasticity and strength are very outstanding projection, high frequency thick, easily into the microphone, professional speaker style, card pack delicate timbre, with crankcase sound, singing performances tilapia.
Optimized for entertainment sense of hearing divider circuit using imported high capacitance and inductance imports of large diameter hollow.
Carefully optimized bass tuning system has a higher efficiency inverter to optimize the low frequency response, greatly reducing wind noise caused by inverting the tube, making the bass more solid and pure.
ARTONE unique box structure to strengthen the technology effectively reduce unwanted cabinet resonance and reduce harmful bass, the sound is more clean, more efficient overall output, making sense of hearing more natural, true!

Application areas
KTV, bars, clubs, nightclubs, dance halls, banquet halls, function rooms and other places.




Specification

Model No.

CT-12

Frequency Response

65Hz20kHz ± 3dB

Power handling

300W (RMS) 600W (PEAK)

Sensitivity

96dB(1W@1M)

Max@S.P.L.

121dB(PEAK/1M)

LF section

12"(310mm) woofer

Nominal impedance

8 ohm

HF section

1.75"compression driver

Nominal impedance

8 ohm

Dispersion

80°H×50°V

Speaker cables

1(+)1(-)

Input connectors

2×NL4MP speakon

Dimensions

352×626×390mm(W×H×D)

Package dimensions

420×695×460mm/0.14cbm

Enclosure

HDF

Net weight

22 kg

Gross weight

24 kg
