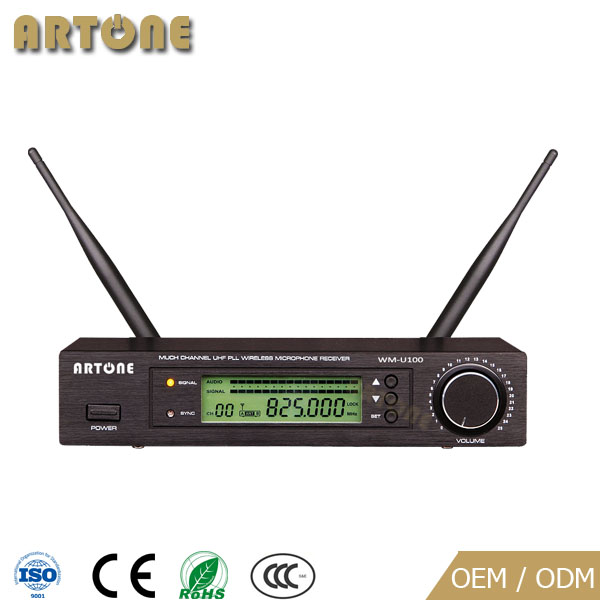

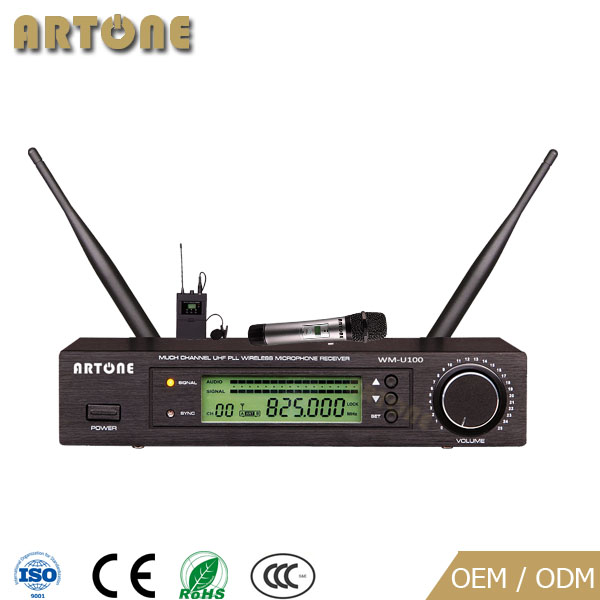

Wireless Microphone WM-U100

  • Model:WM-U100
  • Power:15mW
Details

Overall characteristic
Frequency band
UHF600MHz-920MHz
Number of frequency
100
Frequency band width
25MHz
Modulation mode
FM
Frequency response
50Hz ~ 15KHz
S/N ratio
:﹥95dB
Cover range
Without interference ,within 50 meters is the most ideal
Operating temperature range
5°C ~ 45°C

Handheld microphone transmitter
RF power output
15mW
Oscillation mode
digital frequency synthesizer
Transmit frequency stability
within 30ppm
Dynamic range
≥100dBA –weighted
Frequency response
50Hz ~ 15KHz
Maximum input sound pressure
130dB SPL
Microphone pickuphead
moving coil heart type pointing
Battery
two- pieces battery of 1.5V
Current consumption
under 35mA
