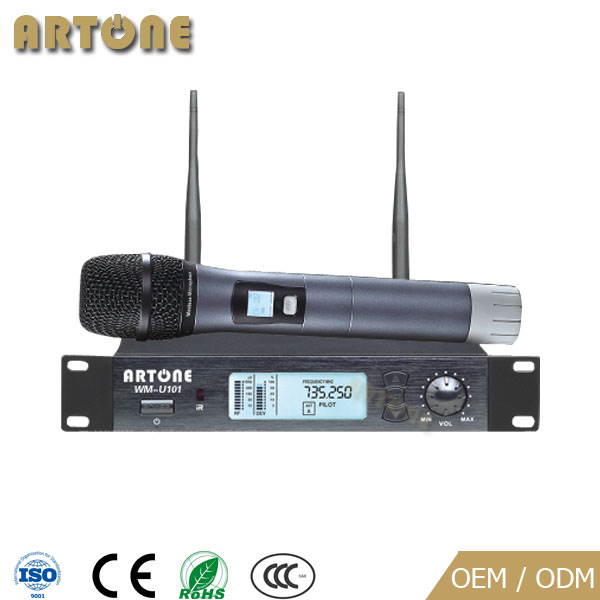

Stage UHF Wireless Microphone 1 Channel

*One channel,150 frequency.

*Using 2 rubber antennas for receiving.

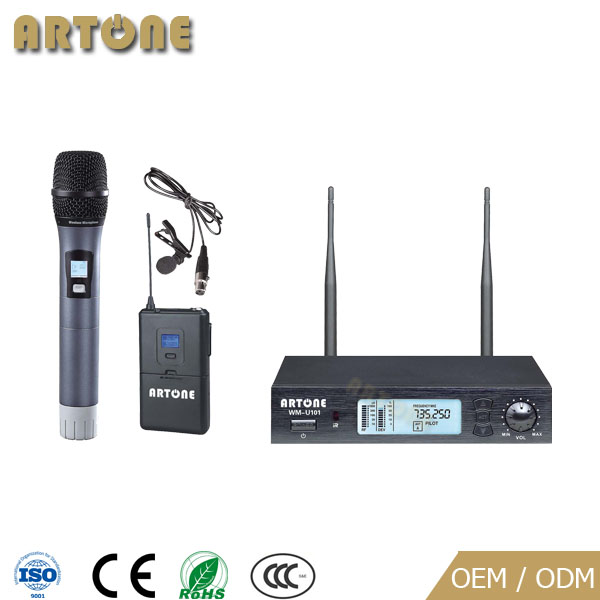

*The receiver can also match clip microphone too(with clip line or headphone is ok).

*Using distance is 100 meter in the open place.

*Double receive function,avoid dead point when using.

*Suitable for professional live performance

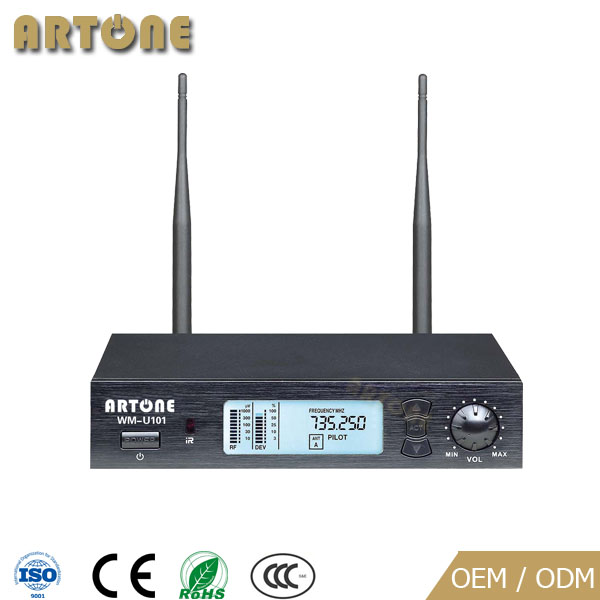

Receive parameters
Oscillation : pllsynthezed

Carrier Frequency Range ： UHF 520MHz-830MHz

Frequency Stability  ： ±0.005%

Max.deviation Range  ：±45KHz

Modulation Mode ： FM

S/N Ratio  : >105dB

T.H.D :<0.5%@1KHz

Sensitivity :1.2/UV @S/N=12dB

Power supply）:DC 12V-17V

Audio Output  :  （Independent）0-400mV
                            （Mixed style）   0-300mv


The emitter parameters

Power supply  : DC 3V(1.5V AA×2)

Power consumption）:80mA

Carrying frequency):UHF 520MHz-830MHz

(Frequency stability):±25KHz

S/N Ratio): >105dB

F/N Ratio):>80dB

(Dynamic tange):>100dB

Type  : Dynamic

Frequency resonse  : 40Hz-15KHz
